Tycon 9-36VDC In, 18VDC Passive PoE Out, 18W DC to DC Converter

Tycon 9-36VDC In, 18VDC Passive PoE Out, 18W DC to DC Converter

TP-DCDC-1218

$15.00 NZD
$15.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

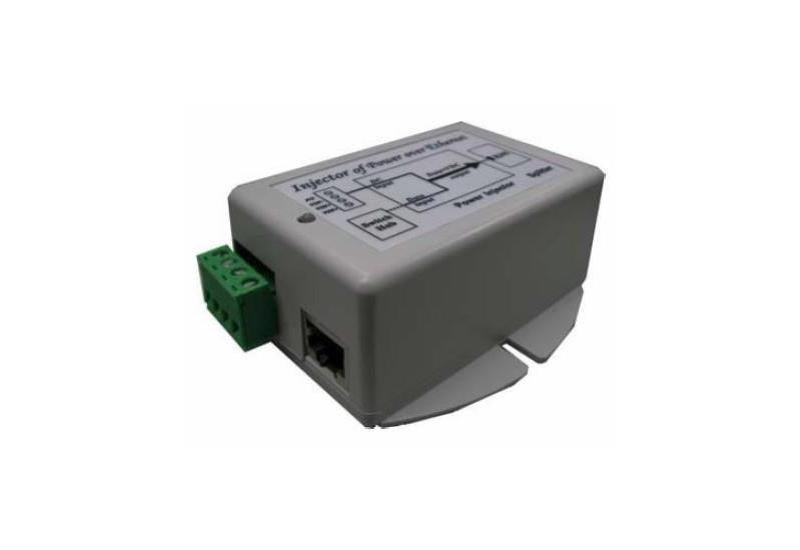

Tycon Power Systems 9-36VDC In, 18VDC Passive PoE Out, 18W DC to DC Converter (TP-DCDC-1218)
TP-DCDC-1218 DC to DC converter takes an input of 9-36VDC and convert to 18V DC Passive PoE regulated output. The TP-DCDC-1218 includes an integrated POE inserter to apply the DC voltage to the CAT5 cable on Pins 4,5 (V+) and Pins 7,8 (V-). They are perfect for running POE powered equipment from a 12V or 24V battery system. They have 2 isolated inputs to handle two power sources like a primary and backup source for uninterrupted failsafe operation.
Features
  • Great accessory for powering your MikroTik, EnGenius and Ubiquiti WiFi outdoor Long range wireless Access Points.
Details
Manufacturer's Product Code TP-DCDC-1218
DC Input Voltage 9VDC – 36VDC
DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage 18V (Passive)
Data in & Data/POE Output Connector RJ45 (Shielded)
Output Current (max) 1.0A
Output Power (max) 18W
Self Consumption Power 1W
Dimensions (LxWxH) 85 x 76 x 36mm
Details
Warranty Standard 12 Month RTB
