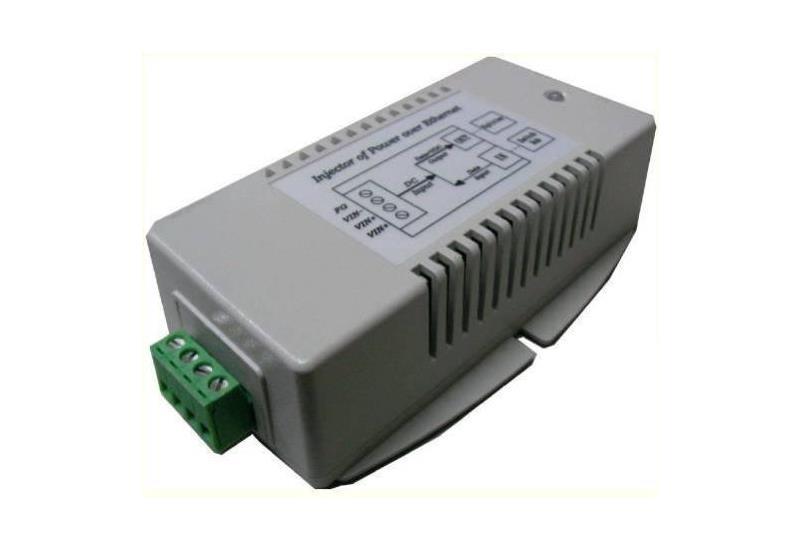

Tycon 36-72VDC In 24VDC 30W Out DC to DC Converter

The Tycon TP-DCDC-4824-HP DC to DC converters take an input of 36-72VDC and convert to 24V DC 30W regulated POE output. The Tycon TP-DCDC-4824-HP includes an integrated POE inserter to apply the DC voltage to the CAT5 cable on Pins 4,5 (V+) and Pins 7,8 (V-). It also has 2 isolated inputs to handle two power sources like a primary and backup source for uninterrupted failsafe operation. The input and output power are isolated so they can be used to convert a negative voltage to a positive voltage. Because of their wide input voltage and regulated output, they can also be used to stabilize a voltage output. Example; a voltage source is a long distance from the equipment with wide voltage fluctuations seen at the equipment.
