Cambium Networks

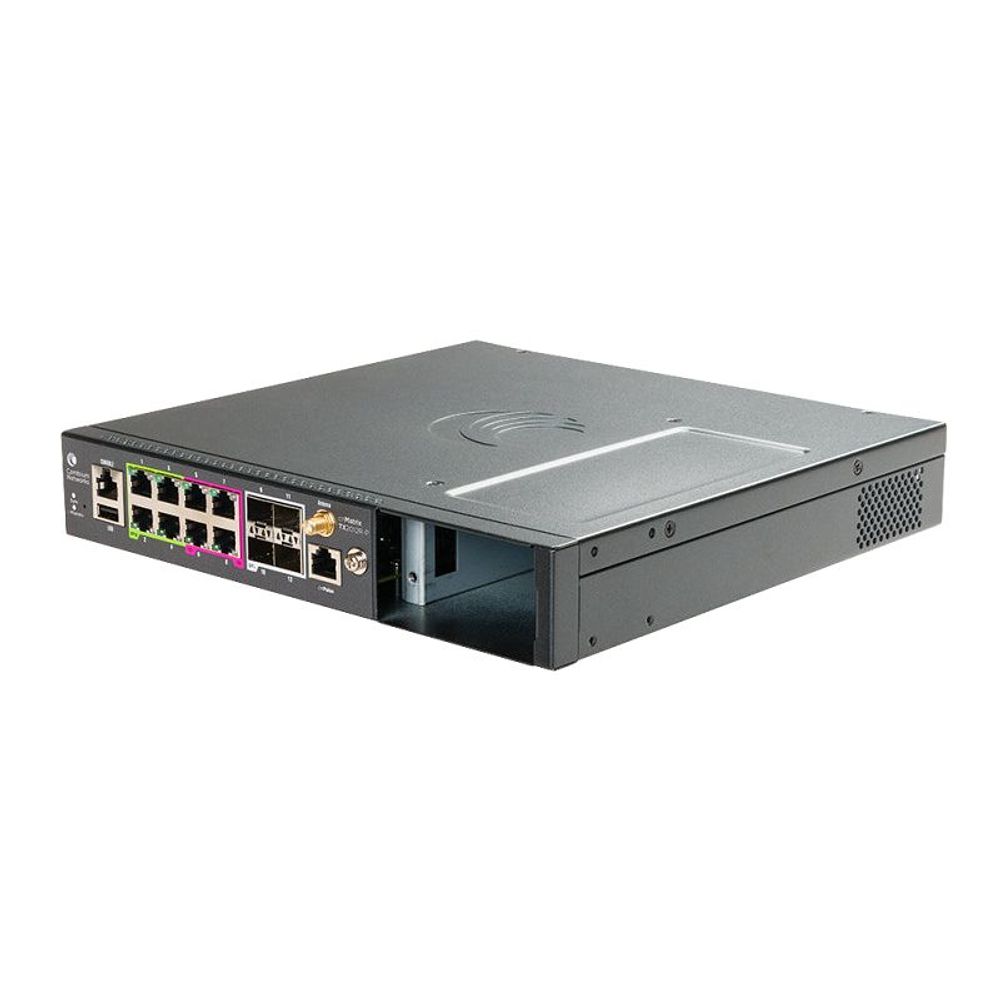

TX2012R-P - Cambium cnMatrix TX2012R-P 12-Port Gigabit PoE WISP Tower Switch
TX2012R-P - Cambium cnMatrix TX2012R-P 12-Port Gigabit PoE WISP Tower Switch
SKU:TX2012R-P
Regular price
$3,004.00 NZD
Regular price
Sale price
$3,004.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Low stock
Quantity
Couldn't load pickup availability
Cambium cnMatrix TX2012R-P 12-Port Gigabit PoE WISP Tower Switch. Cambium cnMatrix TX2012R-P is an Intelligent Ethernet PoE Switch with Cambium Sync, 8x 1gbps Ethernet Ports which support multiple PoE modes, and 4x SFP+ Ports. Power supply sold separately, supports Common Removeable Power Supplies (CRPS).
Cambium cnMatrix Tower Switches provide Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
Cambium Sync
- Redundant Input Sync sources
- Internal GPS module (with external antenna)
- cnPulse port
- Full per-port control with stats available
Comprehensive/Intelligent PoE solution
- 802.3af/at/bt, up to 90W
- 24V Passive PoE, up to 15W
- 54V Passive PoE, up to 90W
Cambium cnMatrix Tower Switches provide Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
Cambium Sync
- Redundant Input Sync sources
- Internal GPS module (with external antenna)
- cnPulse port
- Full per-port control with stats available
Comprehensive/Intelligent PoE solution
- 802.3af/at/bt, up to 90W
- 24V Passive PoE, up to 15W
- 54V Passive PoE, up to 90W
Features
- Comprehensive/Intelligent PoE solution, 802.3af/at/bt – up to 90W, 24V Passive PoE – up to 15W, 54V Passive PoE – up to 90W
- Supports CRPS AC/DC Removable power supplies (sold separately)
- Non-Blocking, Fully Managed, Enterprise Grade, L2/L3 switch
- Cambium (GPS) Sync – Redundant dual sources
- Easy and simple, free cloud (or on premise) management with cnMaestroâ„¢ or XMS
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Unified Wired-Wireless access solution
| Details | |
|---|---|
| Manufacturers Product code | MXTX2012GxPA10 |
| Throughput | 104 Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| 10/100/1000 Mbps RJ45 Ports | 8 |
| 10 Gbps Fiber Ports (SFP+) | 4 |
| Serial Console | Yes |
| USB | Yes |
| Internal Fans | 2 |
| Flash Storage | 128 MB |
| DRAM | 512 MB |
| Cambium Sync (via RJ45 ports) | 8 |
| External Antenna Port (GPS) | Yes |
| cnPulse Port | Yes |
| Removable Power Supply Ports (CRPS) | 1 |
| Power Supply | CRPS dependent |
| Max Switch Power Consumption (WITH TRAFFIC) | 38.88W |
| MTBF (hours) | 393648 |
| Unit Weight | 2.24 kg |
| Unit Dimensions (H x L x W) | 4.4 x 25 x 26 cm |
| CPU Speed | 800 MHz |
| LEDs per port | Link/Activity, PoE |
| PoE Power Budget | CRPS dependent (see Datasheet) |
| 802.3af/at/bt PoE (54V) | Ports 1–8 |
| 24V Passive PoE - up to 15W | Ports 5–8 |
| 54V Passive PoE - up to 90W | Ports 1–4 |
| 54V Passive PoE - up to 30W | Ports 5–8 |
| PoE Max Power Per Port | 30W/90W |
| Rack Mount Kit | Not Included (optional accessory) |
| Wall Mountable | Not Included (optional Accessory) |
| Temperature Ranges | -10°C up to 65°C |
| Operating Humidity | 55°C at 95% RH |
| Storage Temperature | -40°C to 70°C |
Â
| Details | |
|---|---|
| Power Supply | CRPS Modules Sold Separately |
| Mounting Hardware | Not Included (Rack or Wall Mount options available) |
Â
Â
Specifications
Â
Â
Cambium cnMatrix TX2012R-P 12-Port Gigabit PoE WISP Tower Switch. Cambium cnMatrix TX2012R-P is an Intelligent Ethernet PoE Switch with Cambium Sync, 8x 1gbps Ethernet Ports which support multiple PoE modes, and 4x SFP+ Ports. Power supply sold separately, supports Common Removeable Power Supplies (CRPS).
Cambium cnMatrix Tower Switches provide Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
Cambium Sync
- Redundant Input Sync sources
- Internal GPS module (with external antenna)
- cnPulse port
- Full per-port control with stats available
Comprehensive/Intelligent PoE solution
- 802.3af/at/bt, up to 90W
- 24V Passive PoE, up to 15W
- 54V Passive PoE, up to 90W
Cambium cnMatrix Tower Switches provide Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
Cambium Sync
- Redundant Input Sync sources
- Internal GPS module (with external antenna)
- cnPulse port
- Full per-port control with stats available
Comprehensive/Intelligent PoE solution
- 802.3af/at/bt, up to 90W
- 24V Passive PoE, up to 15W
- 54V Passive PoE, up to 90W
Features
- Comprehensive/Intelligent PoE solution, 802.3af/at/bt – up to 90W, 24V Passive PoE – up to 15W, 54V Passive PoE – up to 90W
- Supports CRPS AC/DC Removable power supplies (sold separately)
- Non-Blocking, Fully Managed, Enterprise Grade, L2/L3 switch
- Cambium (GPS) Sync – Redundant dual sources
- Easy and simple, free cloud (or on premise) management with cnMaestroâ„¢ or XMS
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Unified Wired-Wireless access solution
| Details | |
|---|---|
| Manufacturers Product code | MXTX2012GxPA10 |
| Throughput | 104 Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
| 10/100/1000 Mbps RJ45 Ports | 8 |
| 10 Gbps Fiber Ports (SFP+) | 4 |
| Serial Console | Yes |
| USB | Yes |
| Internal Fans | 2 |
| Flash Storage | 128 MB |
| DRAM | 512 MB |
| Cambium Sync (via RJ45 ports) | 8 |
| External Antenna Port (GPS) | Yes |
| cnPulse Port | Yes |
| Removable Power Supply Ports (CRPS) | 1 |
| Power Supply | CRPS dependent |
| Max Switch Power Consumption (WITH TRAFFIC) | 38.88W |
| MTBF (hours) | 393648 |
| Unit Weight | 2.24 kg |
| Unit Dimensions (H x L x W) | 4.4 x 25 x 26 cm |
| CPU Speed | 800 MHz |
| LEDs per port | Link/Activity, PoE |
| PoE Power Budget | CRPS dependent (see Datasheet) |
| 802.3af/at/bt PoE (54V) | Ports 1–8 |
| 24V Passive PoE - up to 15W | Ports 5–8 |
| 54V Passive PoE - up to 90W | Ports 1–4 |
| 54V Passive PoE - up to 30W | Ports 5–8 |
| PoE Max Power Per Port | 30W/90W |
| Rack Mount Kit | Not Included (optional accessory) |
| Wall Mountable | Not Included (optional Accessory) |
| Temperature Ranges | -10°C up to 65°C |
| Operating Humidity | 55°C at 95% RH |
| Storage Temperature | -40°C to 70°C |
| Details | |
|---|---|
| Power Supply | CRPS Modules Sold Separately |
| Mounting Hardware | Not Included (Rack or Wall Mount options available) |
