Cambium Networks

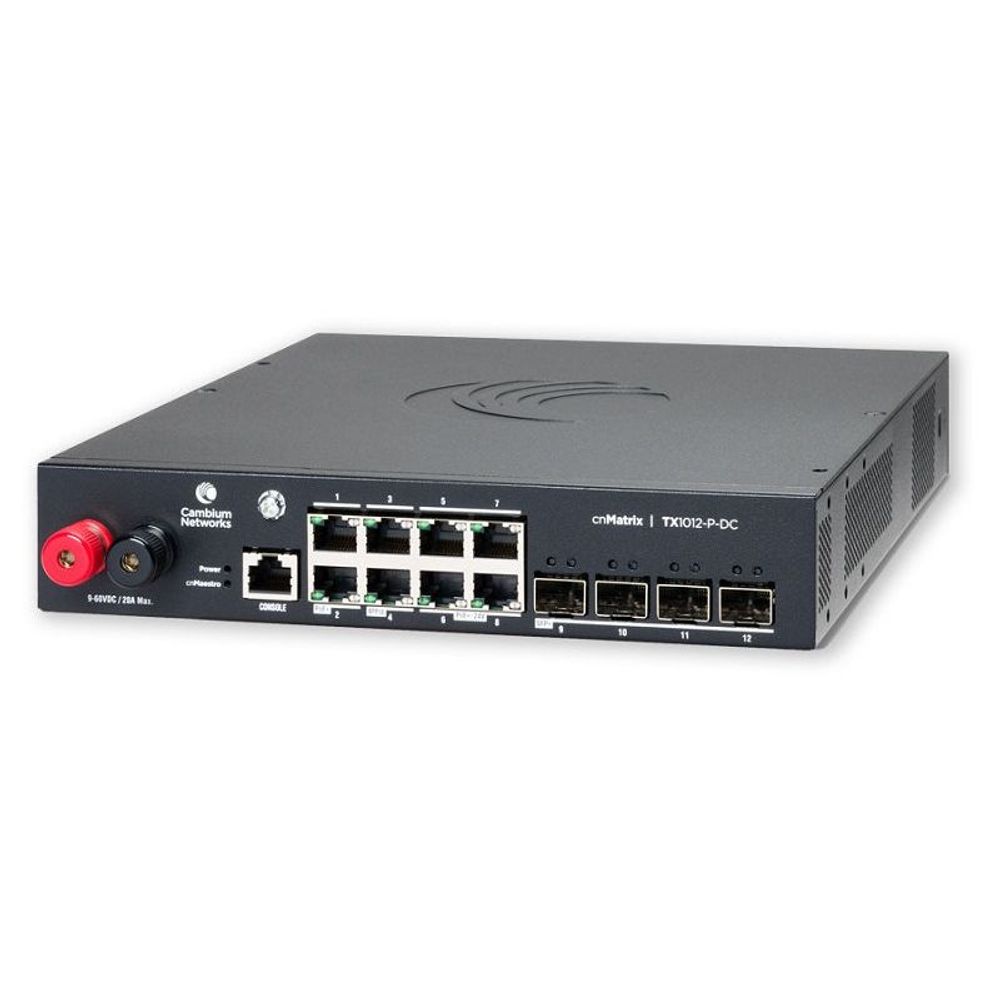

TX1012-P-DC - Cambium cnMatrix TX1012-P-DC 12-Port DC Powered PoE WISP Tower Switch

TX1012-P-DC - Cambium cnMatrix TX1012-P-DC 12-Port DC Powered PoE WISP Tower Switch

TX1012-P-DC

$1,752.00 NZD
$1,752.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
The Cambium cnMatrix TX1012-P-DC, DC Powered Intelligent Ethernet PoE Switch, with 8x 1Gbps, and 4 SFP+ ports.

cnMatrix TX, Tower Switch provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

Comprehensive/Intelligent PoE solution
 • 802.3af/at/bt - up to 90W
• 24V Passive PoE - up to 15W
• 54V Passive PoE - up to 90W
Features
  • Easy and simple, free cloud (or on premise) management with cnMaestroâ„¢
  • Full Line Rate, non-blocking architecture
  • Comprehensive/Intelligent PoE Solution
  • Zero Touch Simplicity with automated configuration
  • Automated security with device profiling and policy enforcement
  • 9-65V DC Input via Terminals
Details
Manufacturers Product code MXTX1012GxPA20
Throughput 96 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
10/100/1000 Mbps RJ45 Ports 8
10 Gbps Fiber Ports (SFP+) 4
Serial Console Yes
Internal Fans 1
Flash Storage 128 MB
DRAM 512 MB
Internal Power Supply 200W
Max Switch Power (WITH TRAFFIC) 200W
MTBF @25°C (hours) 749,495
MTBF @60°C (hours) 207,122
Unit Weight 2.1 kg
Unit Dimensions (H x L x W) 4.4 x 28 x 23 cm
802.3af/at/bt PoE (54V) Ports 1–8
24V Passive PoE - up to 15W Ports 5–8
54V Passive PoE - up to 90W Ports 3-4
54V Passive PoE - up to 30W Ports 1-2, 5-8
PoE Max Power Per Port Ports 1-2, 5-8: 30W, Ports 3-4 90W
Total PoE Power Budget 170W @ 30-65Vin, 120W @ 9–29Vin
Rack Mount Kit Not Included (optional accessory)
Wall Mountable Not Included (optional Accessory)
Temperature Ranges -30°C up to 60°C / Sea Level
Operating Humidity 20% at 90% RH
Storage Temperature -40°C to 70°C
Details
Power Supply N/A (9-65V DC Input via Terminal.)
Mounting Hardware Optional Rack, Wall or Din Mounts Sold Separately





Specifications





Details
Manufacturers Product code MXTX1012GxPA20
Throughput 96 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
10/100/1000 Mbps RJ45 Ports 8
10 Gbps Fiber Ports (SFP+) 4
Serial Console Yes
Internal Fans 1
Flash Storage 128 MB
DRAM 512 MB
Internal Power Supply 200W
Max Switch Power (WITH TRAFFIC) 200W
MTBF @25°C (hours) 749,495
MTBF @60°C (hours) 207,122
Unit Weight 2.1 kg
Unit Dimensions (H x L x W) 4.4 x 28 x 23 cm
802.3af/at/bt PoE (54V) Ports 1–8
24V Passive PoE - up to 15W Ports 5–8
54V Passive PoE - up to 90W Ports 3-4
54V Passive PoE - up to 30W Ports 1-2, 5-8
PoE Max Power Per Port Ports 1-2, 5-8: 30W, Ports 3-4 90W
Total PoE Power Budget 170W @ 30-65Vin, 120W @ 9–29Vin
Rack Mount Kit Not Included (optional accessory)
Wall Mountable Not Included (optional Accessory)
Temperature Ranges -30°C up to 60°C / Sea Level
Operating Humidity 20% at 90% RH
Storage Temperature -40°C to 70°C
