RF Elements

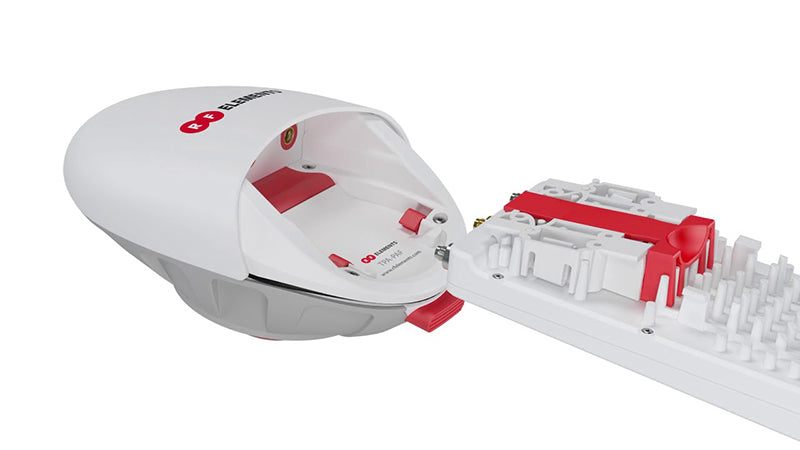

TwistPort Adaptor for Rocket 5ac Prism, AirFiber 5X-HD and LTU-Rocket

TwistPort Adaptor for Rocket 5ac Prism, AirFiber 5X-HD and LTU-Rocket

TPA-PAF

$120.00 NZD
$120.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
TwistPort Adaptor for Rocket 5ac Prism, AirFiber 5X-HD and LTU-Rocket
TwistPort Adaptor adapts 3rd party radios to RF elements proprietary TwistPort waveguide connector. Integration of the radio is smooth and requires no . Making 3rd party radios compatible with TwistPort allows for using the radio with any TwistPort antenna ever made and enable superior performance, noise immunity and network scalability.

This TP-A is also compatible with the LTUTM Rocket and AF-5XHD airFiber® and with newest Gen 2 of Rocket Prism 5AC radios. Complete List of compatible radios includes: UBNTTM LTUTM Rocket, airFiber® 5X, airFiber® 5XHD, Rocket Prism 5AC and Rocket Prism 5AC Gen2.

The migration path from Rocket Prism 5AC to airFiber® 5X or LTUTM Rocket platform is smooth and effective, as no additional investment on TP-A is required.

TwistPort Adaptors cover an ultra-wideband spectrum of 5180-6400 MHz and perform with superb efficiency with very well managed VSWR.
Features
  • For Rocket® Prism 5AC, airFiber® 5X and LTU® Rocket
  • GPS Antenna Integration
  • Market Leading Performance
  • Easy Installation
Details
Product Code TPA-PAF
Antenna Connection TwistPort - Quick Locking Waveguide Port
Radio Connection 2x Slide-On RP-SMA and 1x SMA for GPS
Materials Aluminium Alloy, Adaptor - UV stabilized and weather resistant ABS plastic
Flame Rating UL 94 HB
Temperature -40°C to +60°C (-40°F to +140°F)
Wind Survival 160 km/h
Frequency Range 5180 - 6400 MHz
Polarization Dual Linear H + V
Antenna Compatibility Any TwistPort Compatible Antenna
Radio Compatibility Ubiquiti: Rocket Prism 5AC, Rocket Prism 5AC Gen2, airFiber 5X, airFiber 5X-HD, LTU-Rocket
