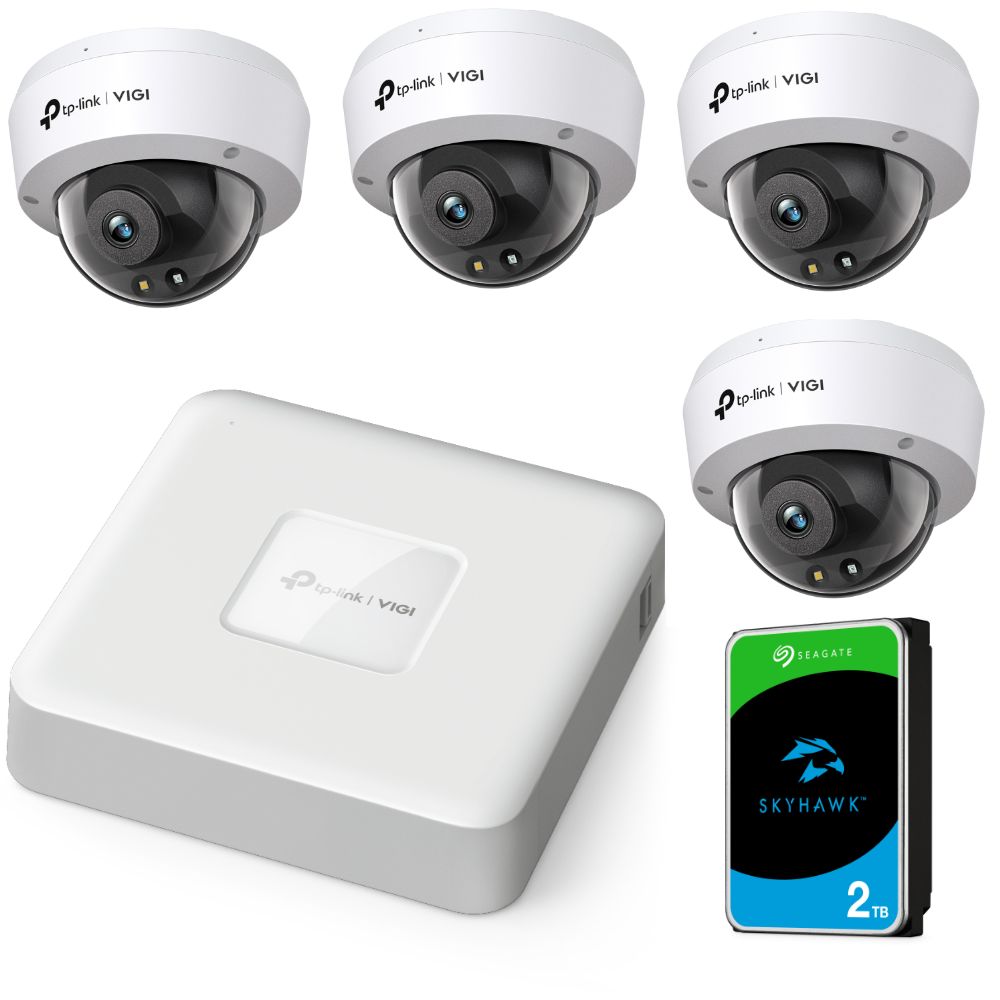

TP-Link Surveillance Kit - 4ch NVR + 2TB HDD + 4x Dome Camera

Name: TP-Link Surveillance Kit - 4ch NVR + 2TB HDD + 4x Dome Camera
Brand: TP-LINK
SKU: TP-Link-Surveillance-Kit-2
Price: 763.71 NZD
Availability: OutOfStock

SKU:TP-Link-Surveillance-Kit-2

$763.71 NZD

Sale Sold out

Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

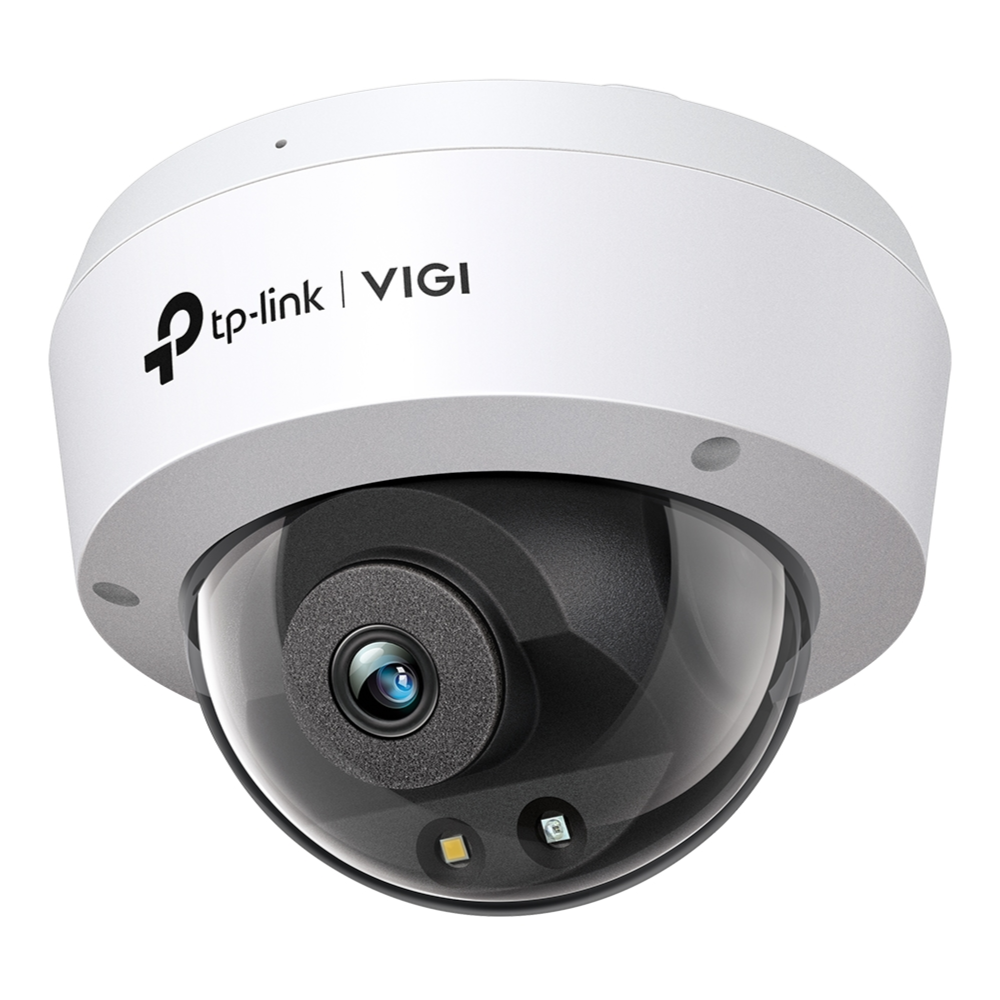

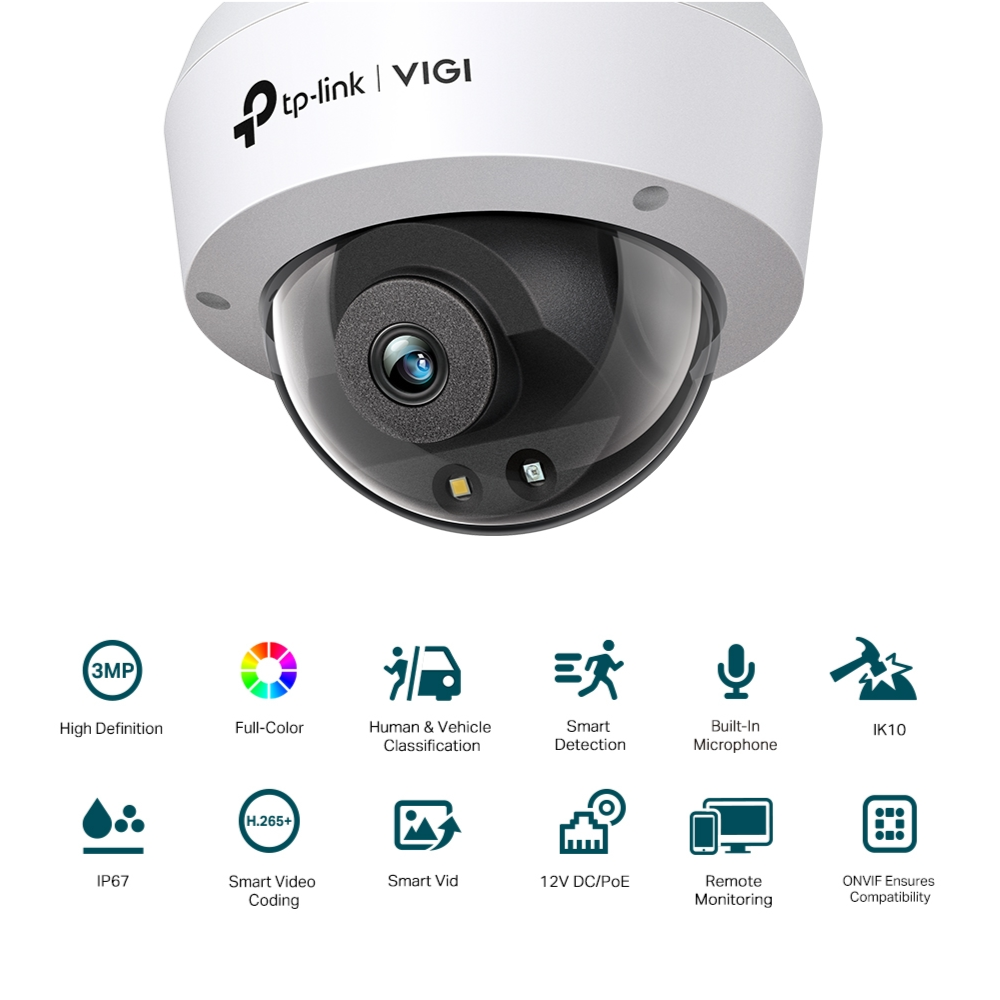

TP Link VIGI C230 (2.8mm) 3MP Outdoor Full-Colour Dome Network Camera

3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

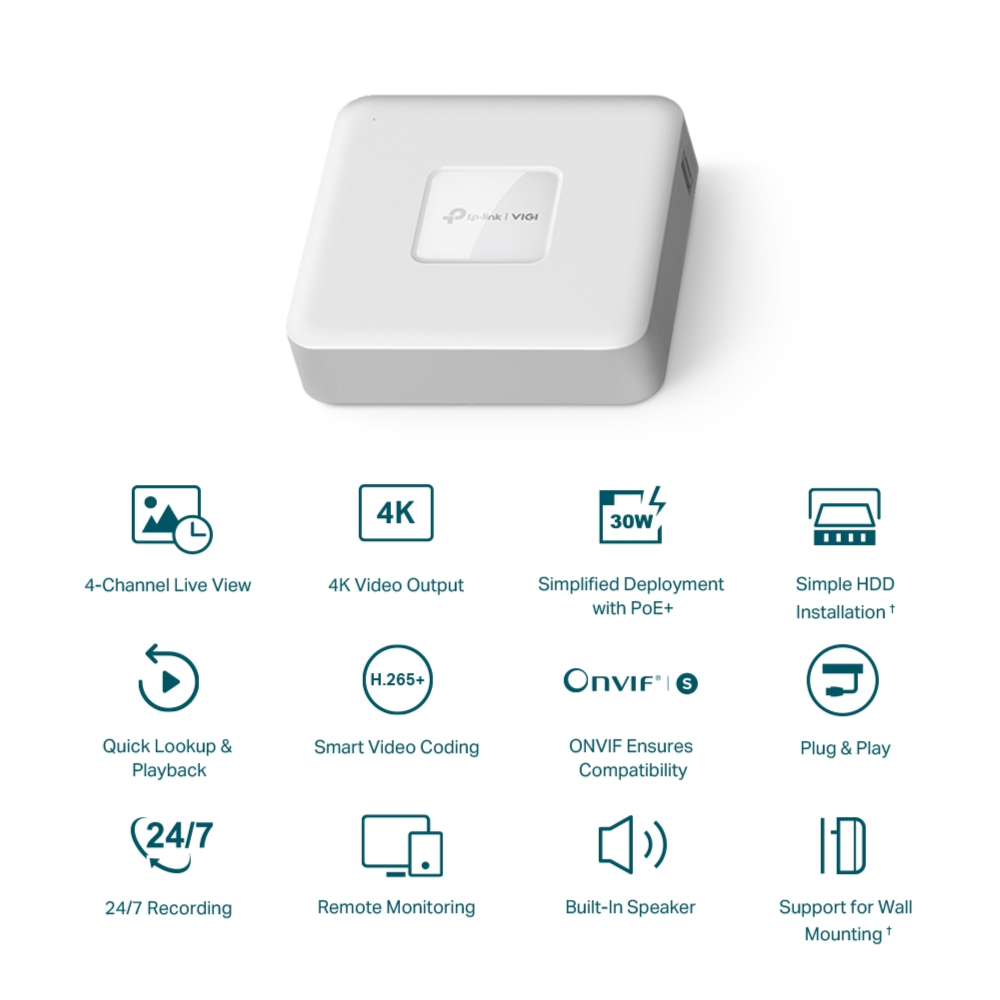

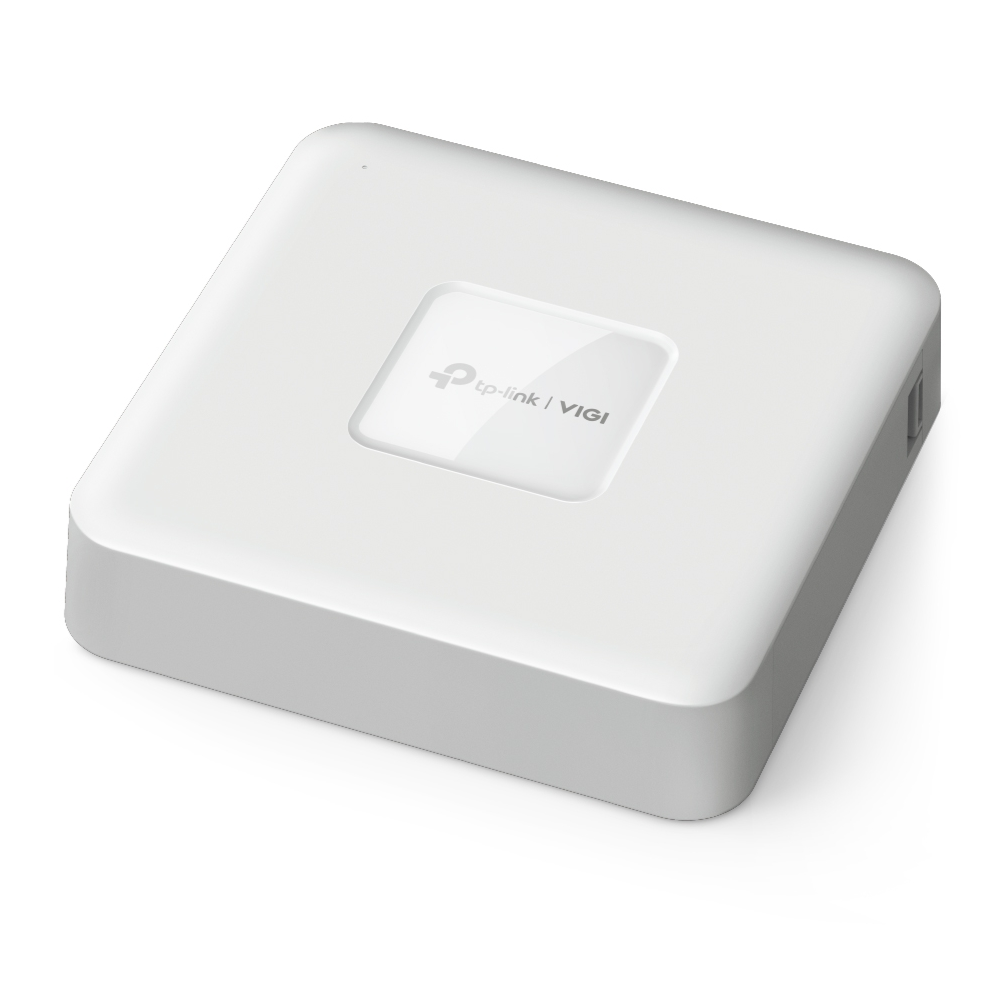

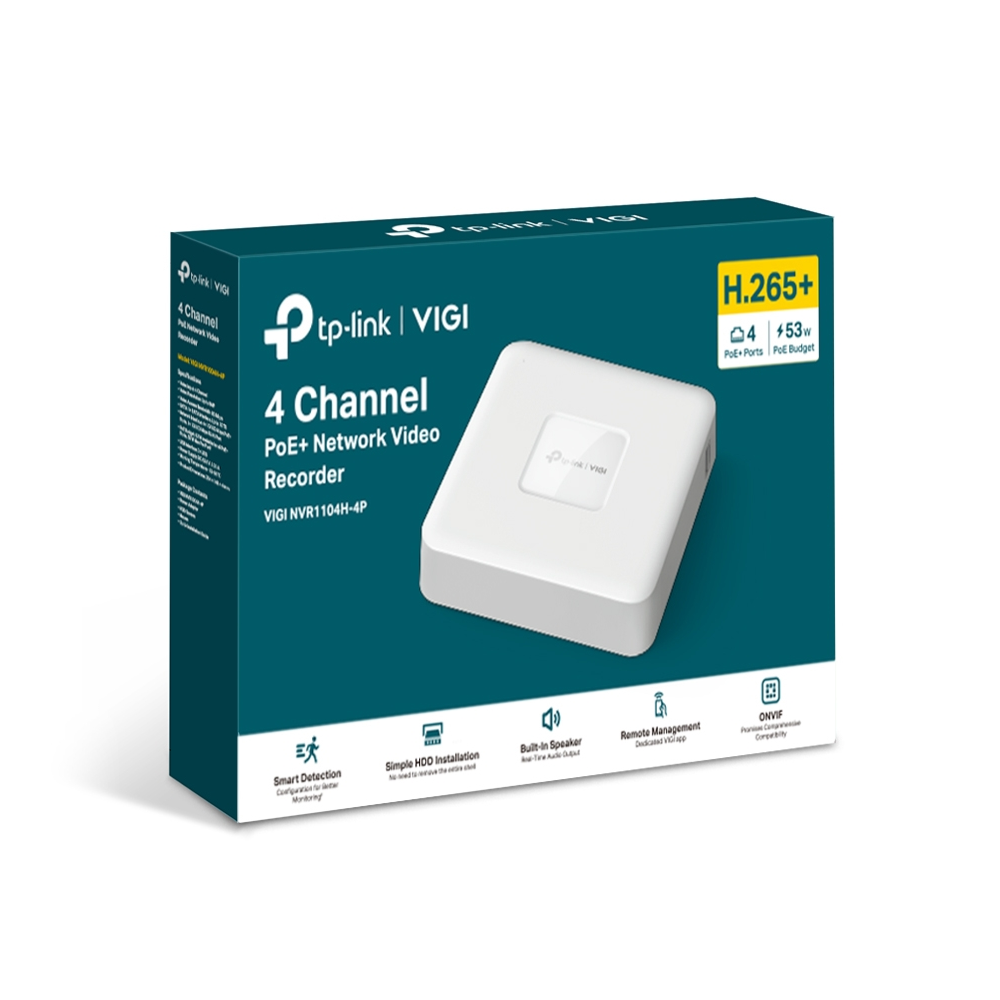

VIGI NVR1104H-4P

VIGI 4 Channel PoE+ Network Video Recorder

4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle^‡.

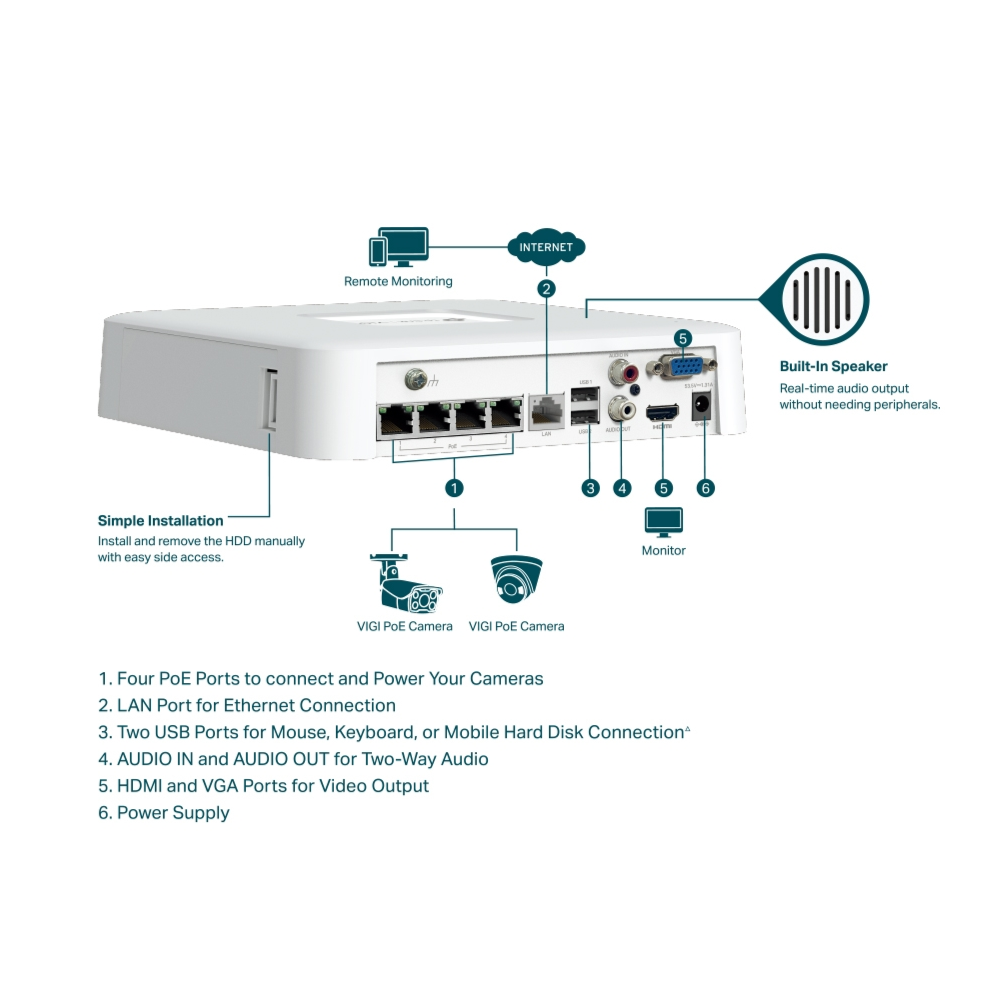

Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
Simple HDD Installation^†: Install and remove the HDD manually with easy side access.
4-Channel Simultaneous Playback^△: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
ONVIF Ensures Compatibility^*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

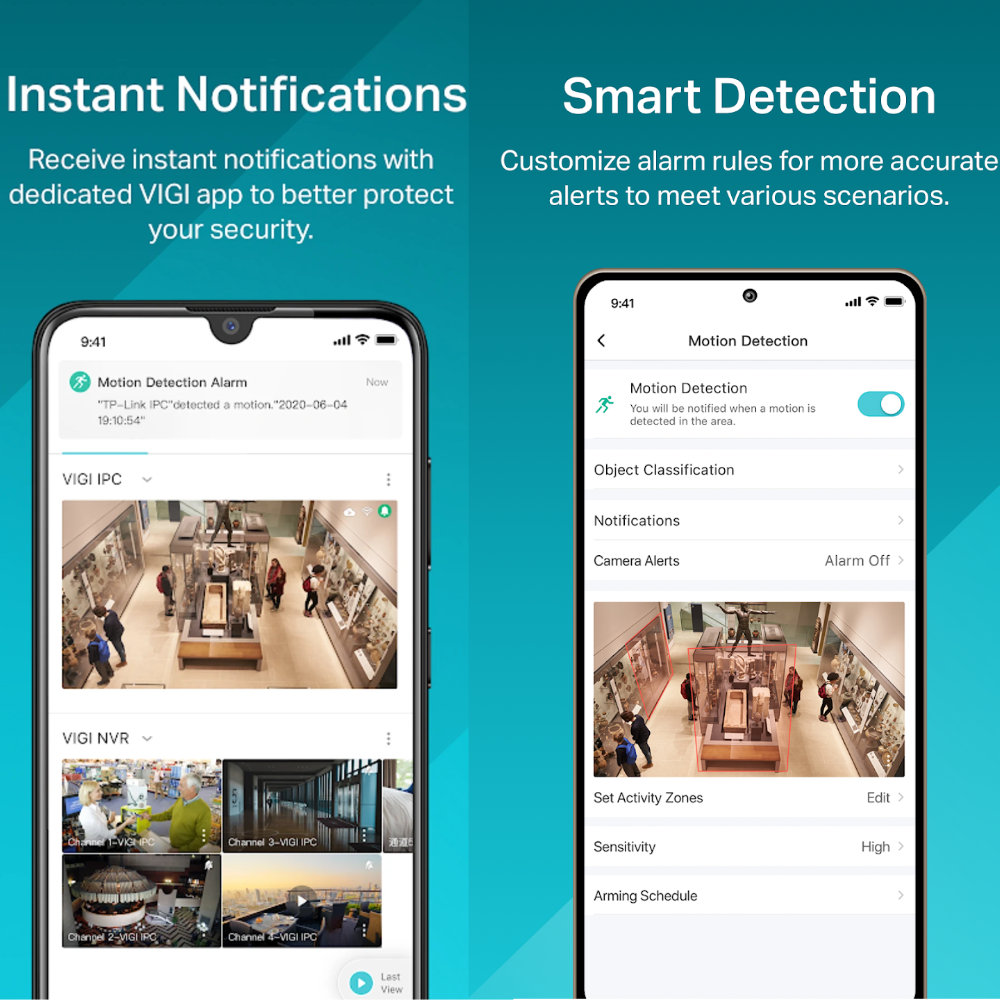

Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Built-In Speaker: Enjoy real-time audio output without needing peripherals for greater convenience.
Flexible Installation: Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk.

Specifications

CAMERA
Image Sensor	1/2.8” Progressive Scan CMOS
Lens	2.8 mm/ 4 mm
Aperture	2.8 mm: F1.6 4 mm: F1.6
Lens Mount	M12
Viewing Angle	2.8mm: Horizontal FOV: 107.5°, Vertical FOV:57.2°, Diagonal FOV: 128.7° 4mm: Horizontal FOV: 89.1°, Vertical FOV:45.1°, Diagonal FOV: 106.9°
Day/Night Mechanism	IR Cut Filter
Minimum Illumination	Color: 0.005 Lux; 0 Lux with IR/White Light
Pan/Tilt Range	Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Weatherproof Rating	IP67
Digital Noise Reduction	3D DNR
WDR	DWDR

NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web

GENERAL

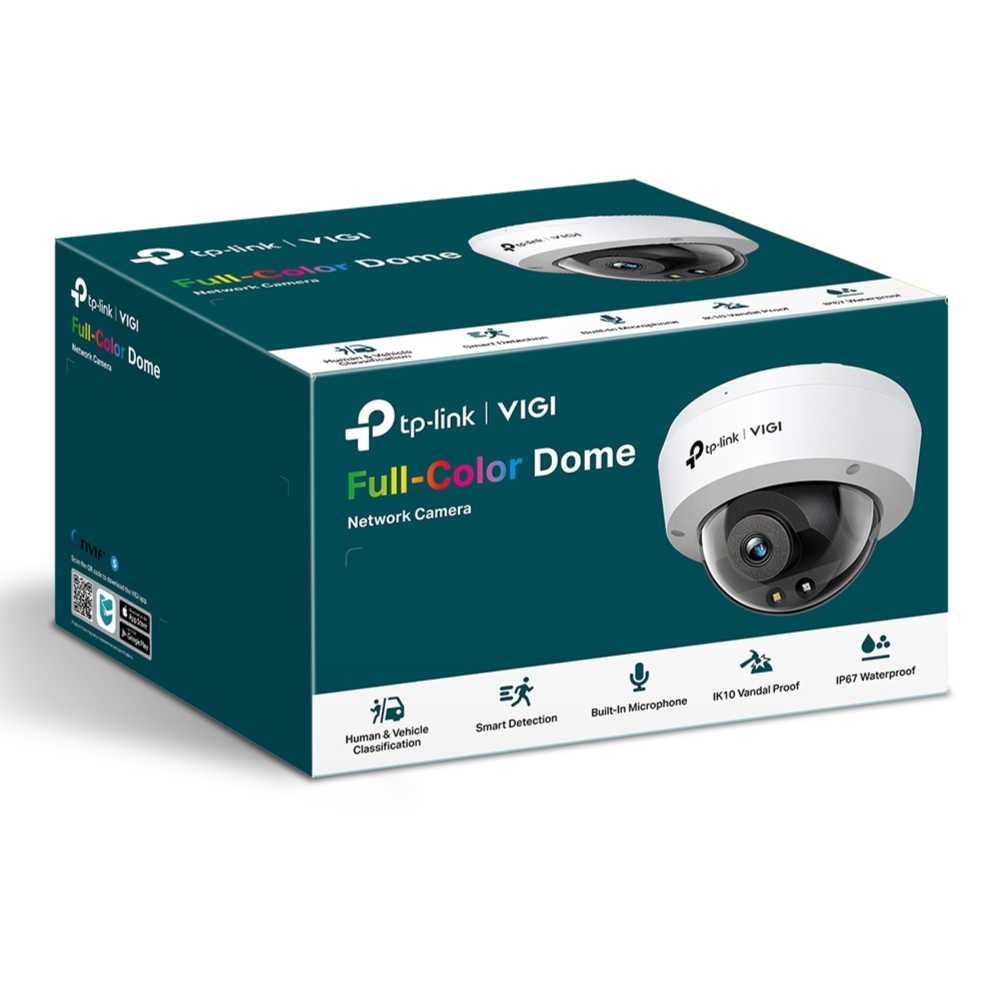

Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Operating Temperature	-30–60 °C
Certifications	CE/BSMI/VCCI/ONVIF
Dimensions( H X W X D )	115 × 115 × 86 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Power Consumption	12V DC: Max 4.7W PoE: Class 0
Vandal Resistant	IK10

ILLUMINATOR
IR LED	Quantity: 1 Range: 30m Wavelength: 850nm
White LED	Quantity: 1 Range: 30m

VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution	3MP (2304 × 1296)
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule

SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Button	-
Video Output	-
On-board Storage	-
Built-in Microphone	Yes

NETWORK
Protocol	TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps

GENERAL
Package Contents	VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide
Operating Temperature	-10–55 °C
Dimensions( H X W X D )	200.3 × 200.3 × 43 mm
External Power Supply	53.5V DC/1.31A
Power Consumption	4.82 W (without disk)

VIDEO/IMAGE
Video Input	4-Channel IP Video Input, up to 8MP Resolution
Recording Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz

DECODING
Decoding Format	H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF
Synchronous Playback	4 Channel
Capability	2-ch @ 8MP, 4-ch @ 4MP
