TL-SM5110-LR - TP Link 10GBase-LR SFP+ LC Transceiver

TL-SM5110-LR - TP Link 10GBase-LR SFP+ LC Transceiver

TL-SM5110-LR

$75.57 NZD
$75.57 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

10GBase-LR SFP+ LC Transceiver

  • Single-mode SFP+ LC Transceiver
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
  • Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

What This Product Does

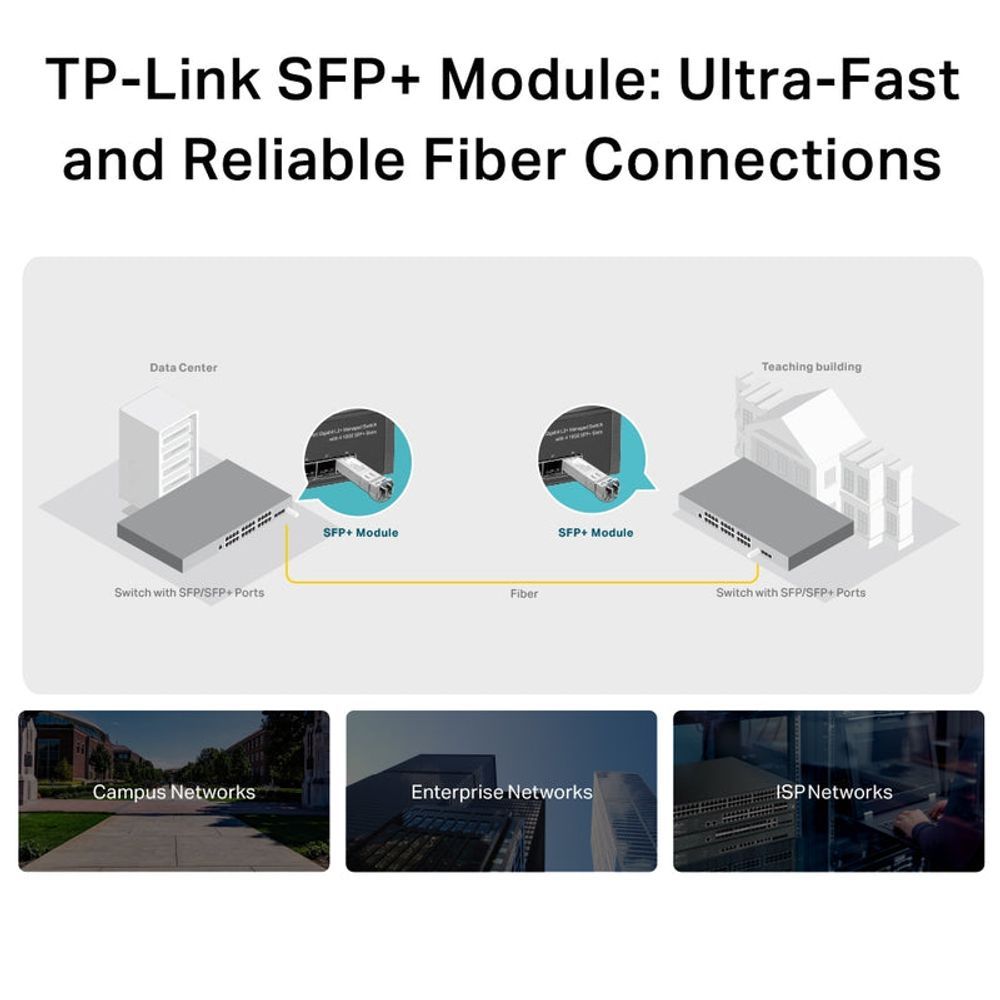

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.



PACKAGE CONTENTS
Package Contents • 10G SFP+ Module TL-SM5110-LR
• Installation Guide
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Dimensions (W*D*H) 2.2*0.5*0.4 in (56.7*13.9*10.35 mm)
TRANSCEIVER
Standards and Protocols IEEE 802.3ae, TCP/IP
Wave Length 1310 nm
Power Supply 3.3V
Fiber Type 9/125um Single-Mode
Max. Cable Length 10 km
Data Rate 10 Gbps
Port Type LC Duplex
Safety & Emission FCC, CE
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
