• TL-SM321A - TP-Link 1000Base-BX WDM Bi-Dir SFP MOD
1 1

TP-LINK

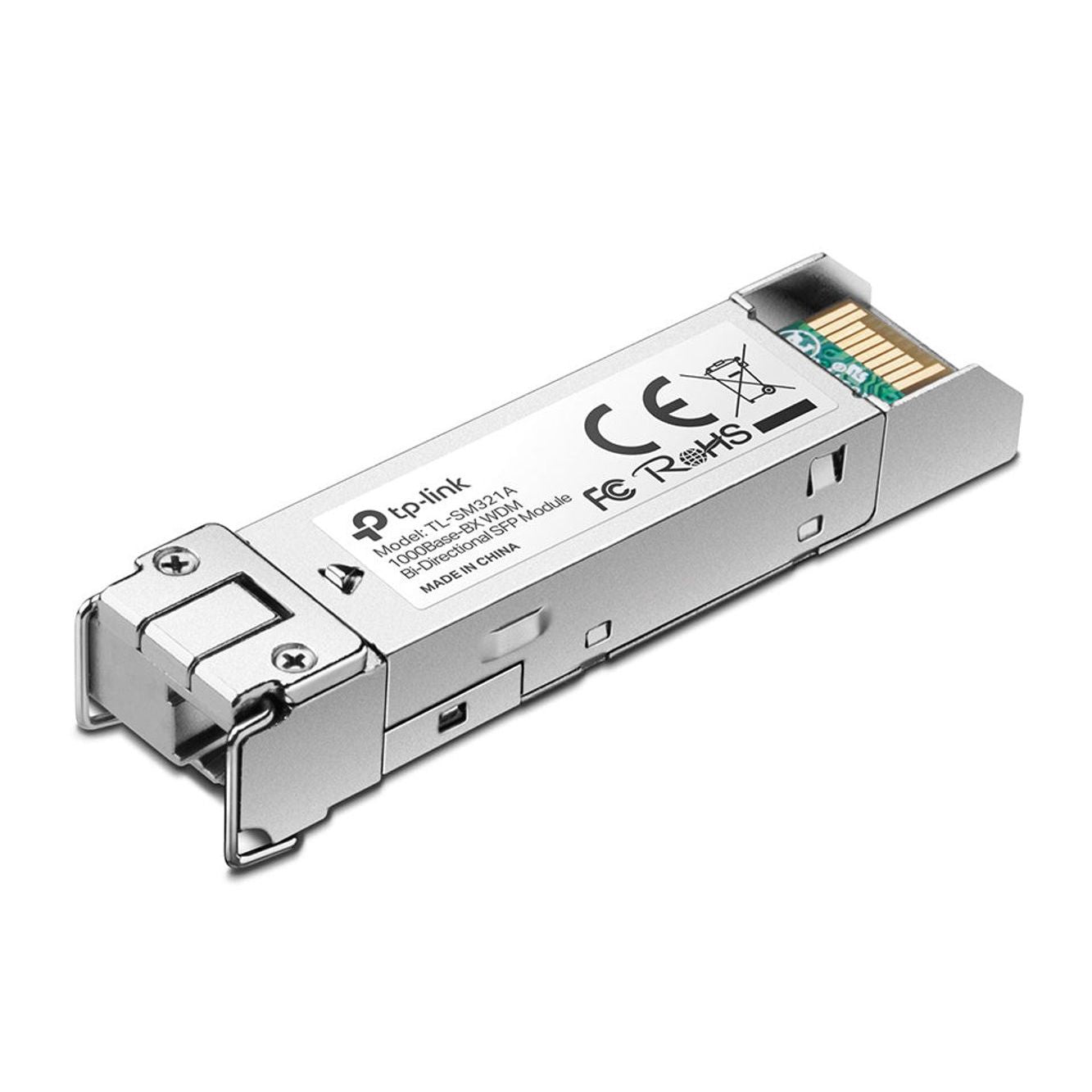

TL-SM321A - TP-Link 1000Base-BX WDM Bi-Dir SFP MOD

TL-SM321A - TP-Link 1000Base-BX WDM Bi-Dir SFP MOD

TL-SM321A

$35.31 NZD
$54.00 NZD $35.31 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

1000Base-BX WDM Bi-Directional SFP Module

  • WDM Bi-Directional SFP Module
  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

What This Product Does

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.



PACKAGE CONTENTS
Package Contents • SFP Module TL-SM321A
• Installation Guide
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, TCP/IP
Wave Length TX: 1550 nm
RX: 1310 nm
Power Supply 3.3 V
Safety & Emission FCC, CE
Cabel Single-Mode Fiber
Fiber Type 9/125 μm Single-Mode
Max. Cable Length 20 KM
Data Rate 1.25 Gbps
Port Type LC Simplex
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
For additional version information, please go to the support page.
