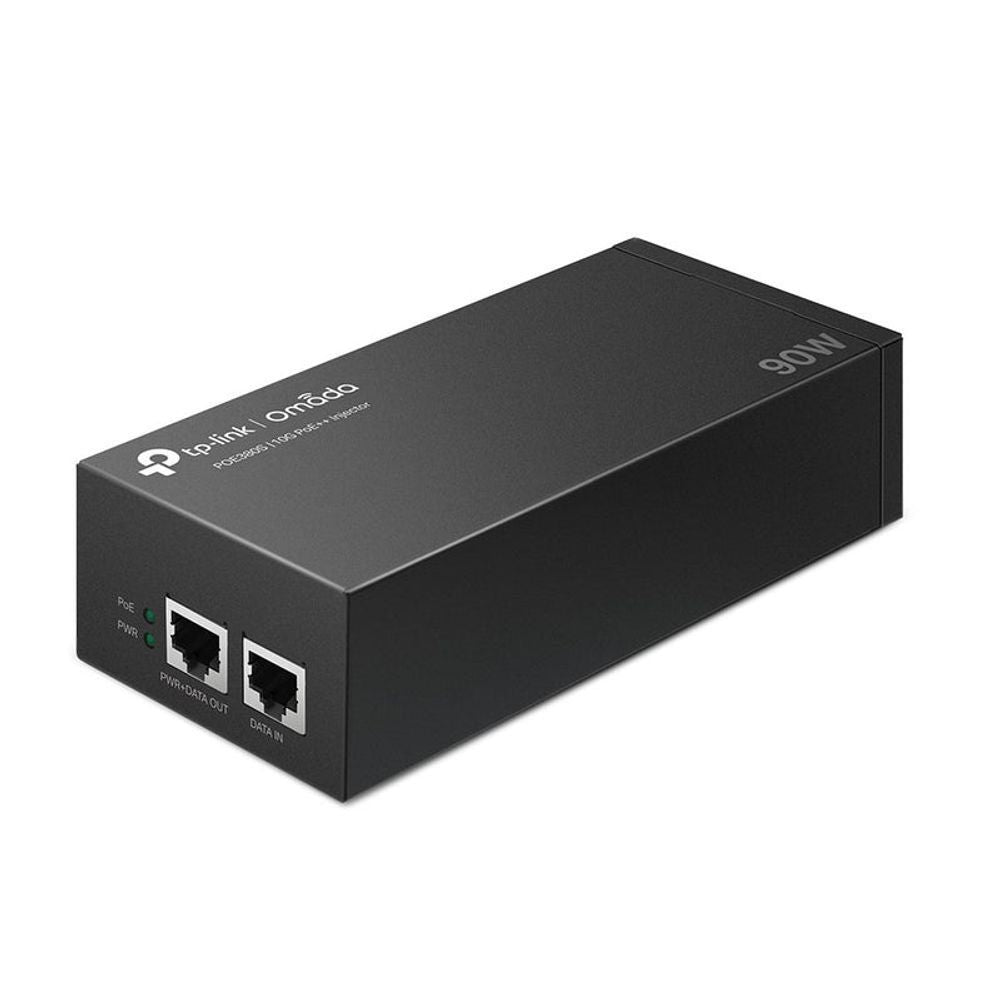

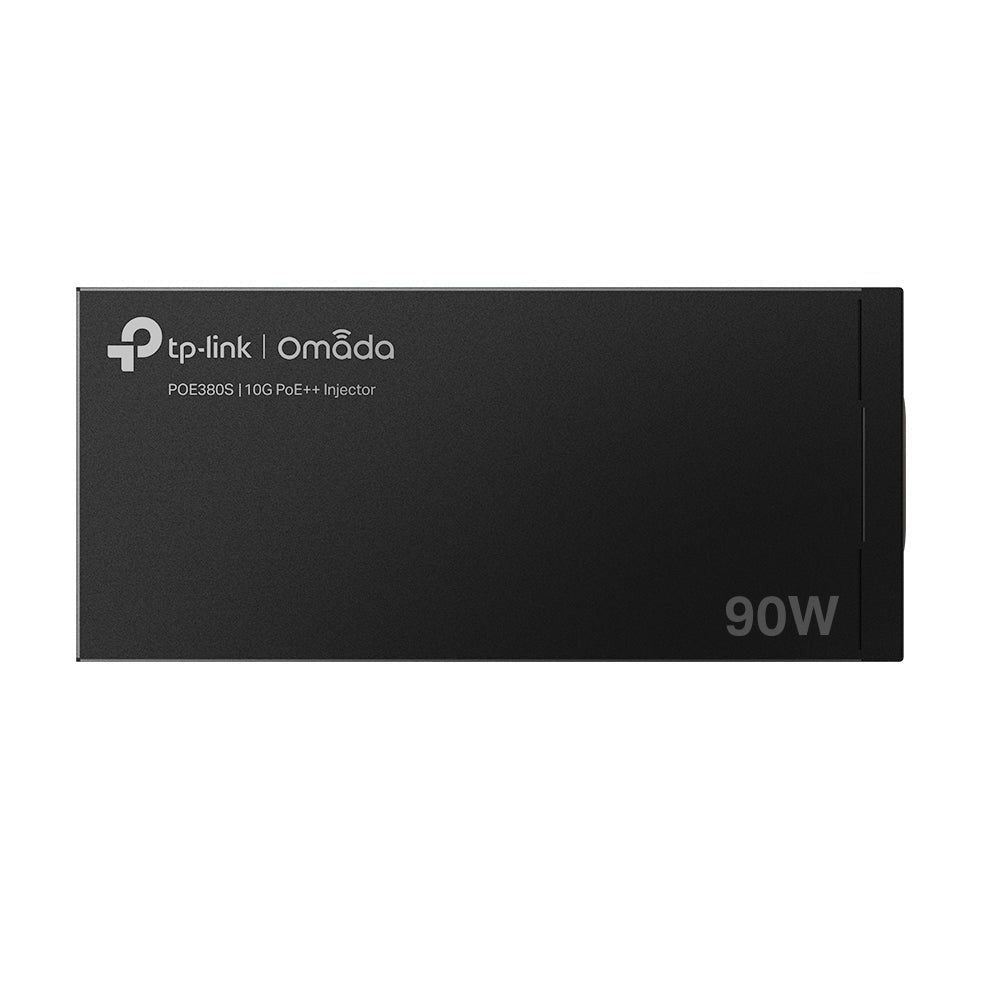

TL-POE380S - TP-Link POE380S, Omada 10G PoE++ Injector

TL-POE380S - TP-Link POE380S, Omada 10G PoE++ Injector

TL-POE380S

$157.25 NZD
$157.25 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

Omada PoE++ Injector

  • 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
  • Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, no configuration required
  • Integrated power supply
  • Durable metal casing
HARDWARE FEATURES
Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

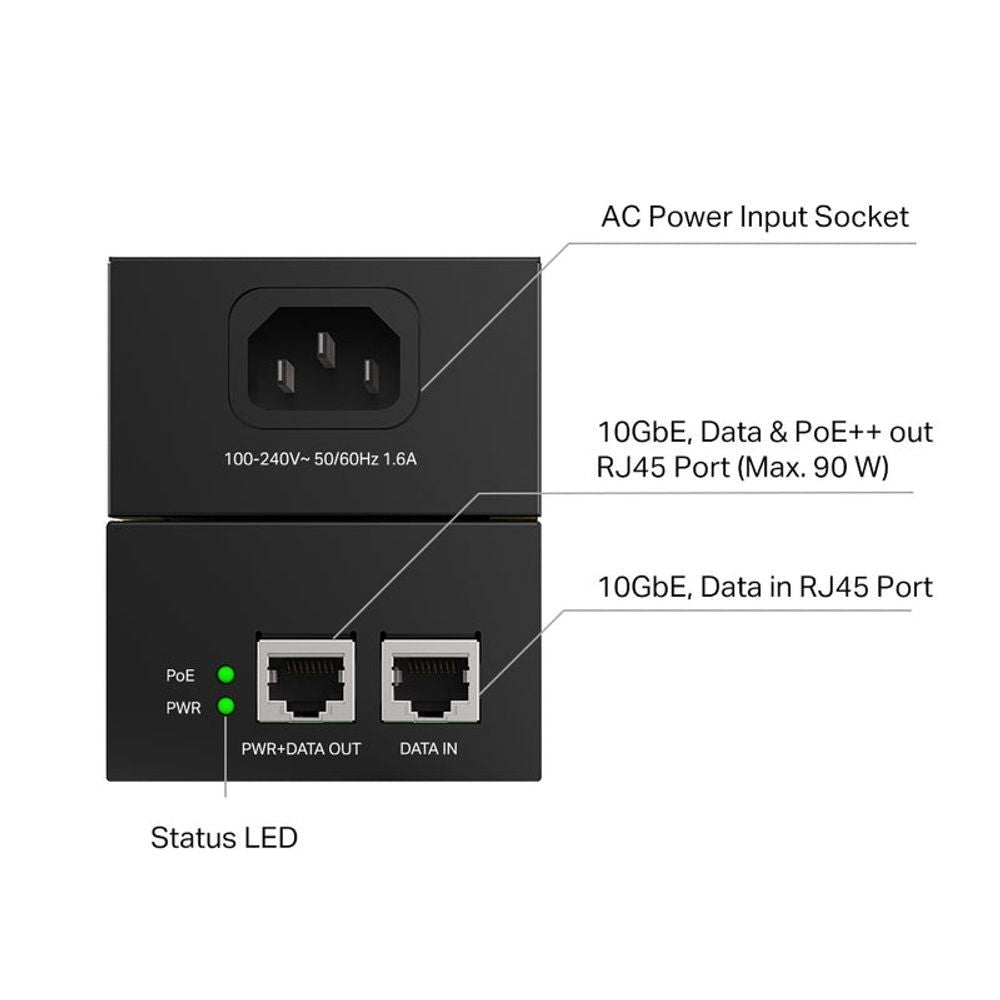

Ports • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port
• 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W)
• 1× AC socket
Power Consumption • Input: 100-240 V, 50/60 Hz, 1.6A
• Output: Auto-determine the necessary power requirements (max. 90 W)
Basic Function • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
• Auto-determine the necessary power requirements
• Wall-mounting and desktop installation
• Plug-and-Play
LED Power / PoE
Dimensions ( W x D x H ) 6.1*2.8*1.7 in (155*70*42 mm)
OTHERS
Certification FCC, CE, RoHS

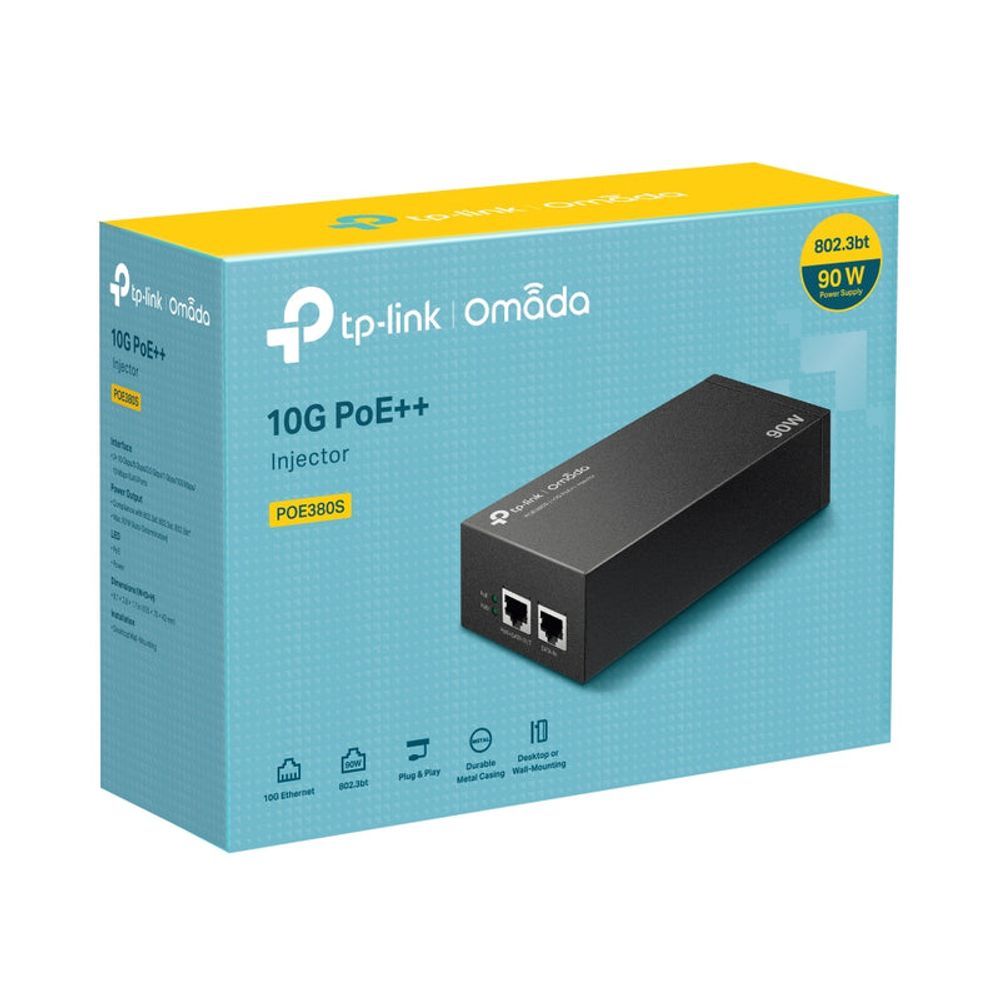

Package Contents • POE380S
• Power Cord
• Installation Guide
Environment • Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90%RH non-condensing
• Storage Humidity: 5% to 90%RH non-condensing
For additional version information, please go to the support page.

*POE380S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.
