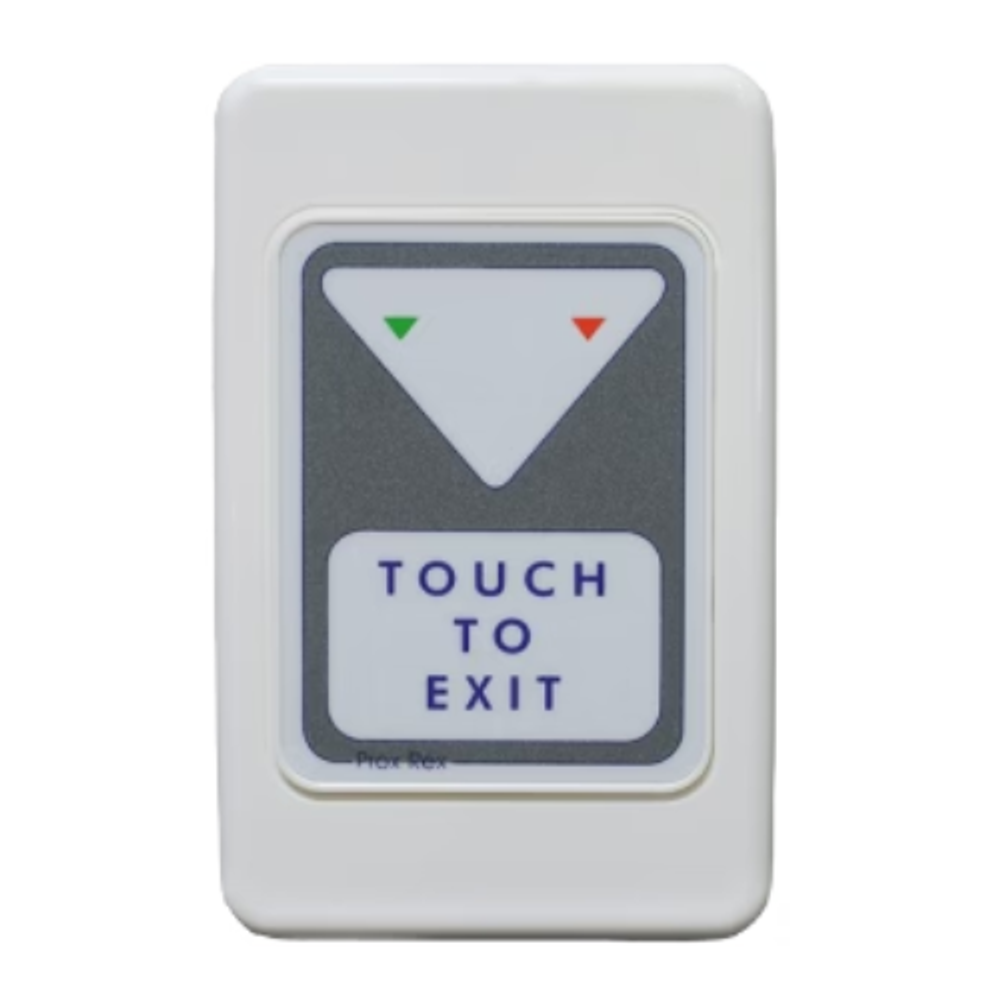

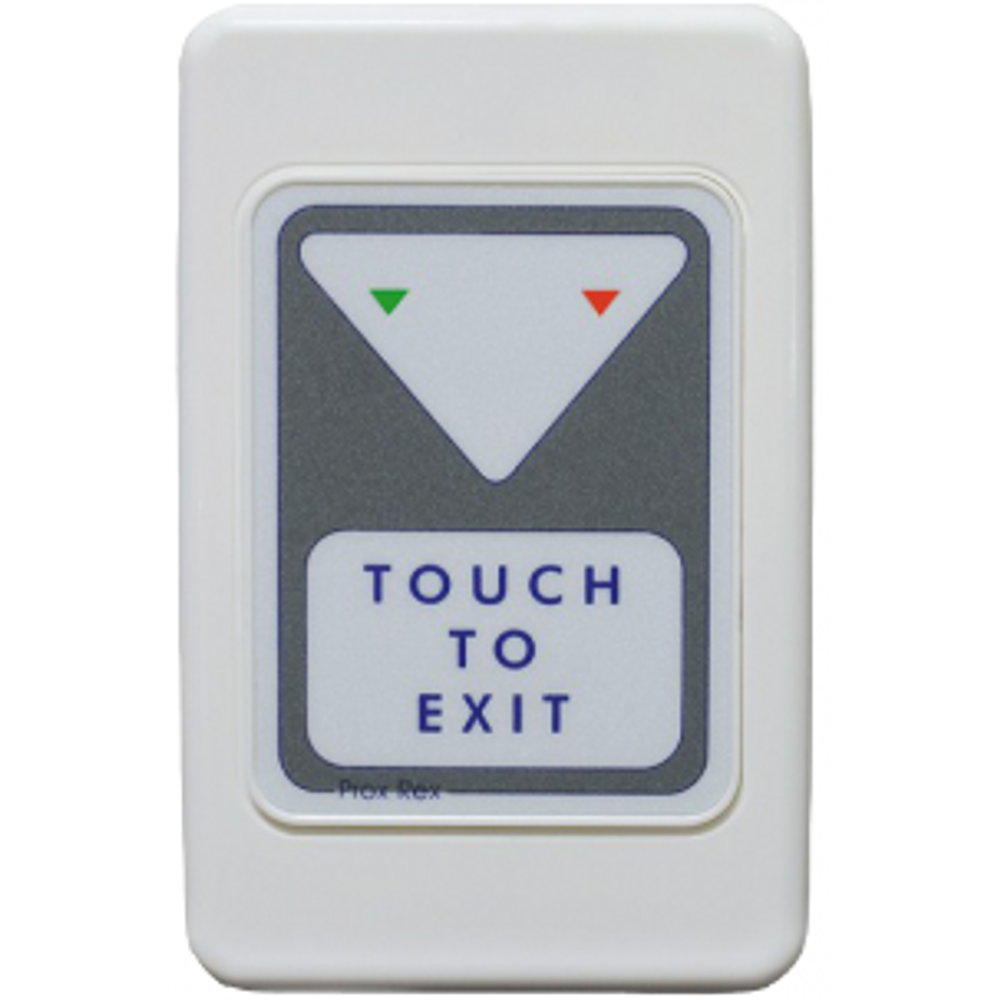

The Prox-Rex^® (Touch to Exit) is a touchless egress unit designed for use with Access Control Systems and is an ideal replacement for conventional push buttons, door release buttons, call switches, etc.

Features

• Requires only the touch of a finger to activate, making it perfect for fast and easy egress and an advantage for the elderly and disabled.
• Vandal-Resistant – all components are behind the plate.
• Perfect replacement for door release buttons that are in high usage areas.
• No moving parts.
• Ideal for areas where infection control is important.
• Easy to clean and fade resistant.
• Two LED indicators provide visual confirmation for: Red for heartbeat and Green for operated.
• Built-in sounder to provide audible confirmation of operation.

Specifications

• Single gang profile fits standard electrical flush box
• Power requirements 9 to 16Vdc - 50mA at 13.6 Vdc

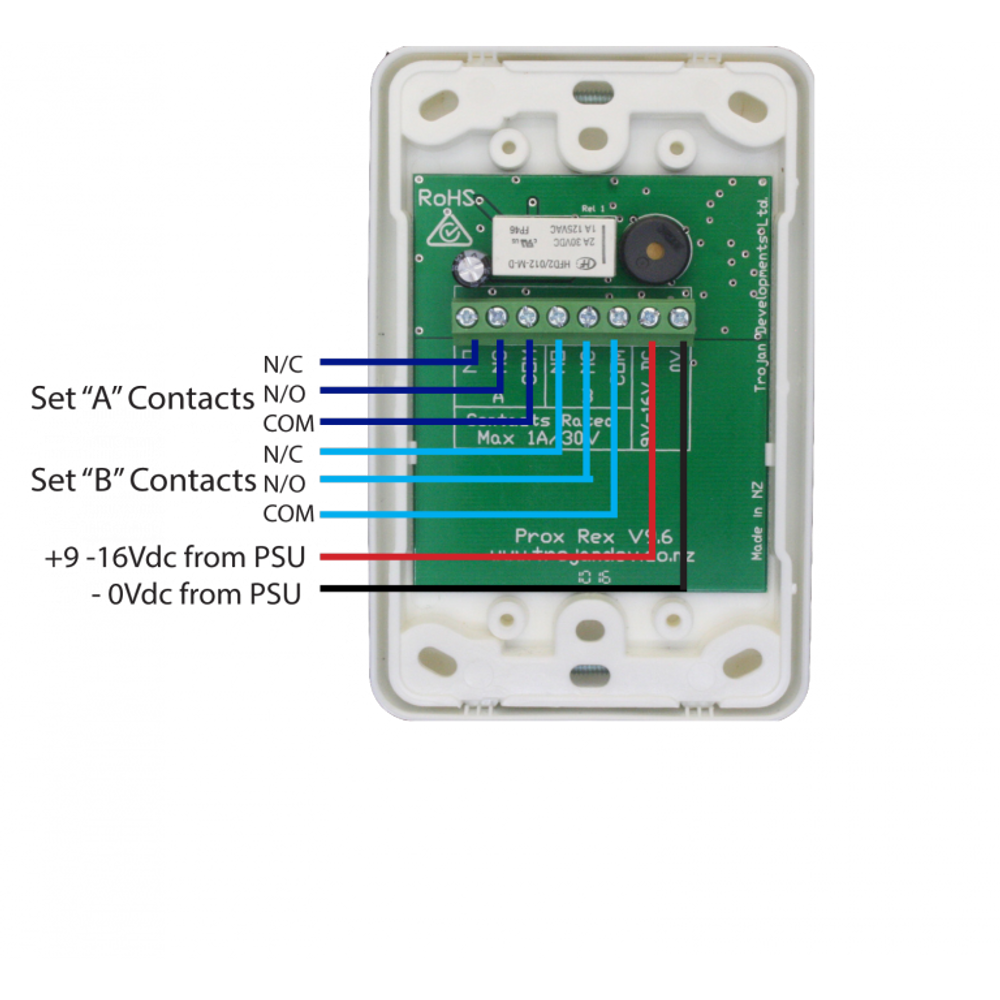

• 2 sets of clean N/O and N/C outputs
• The contacts are rated at 1 AMP 30Vdc
• The switch is fully self-calibrating
• The faceplate will not deteriorate over time and is easily cleaned
• C-Tick, RCM, RoHS Certified
