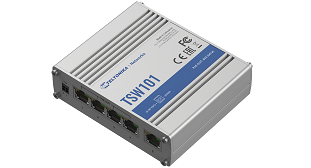

Teltonika TSW101 4+1 Port Gigabit Unmanaged 9 - 30V DC in to 802.3af/at PoE Out Switch for Solar and Automotive Applications

Teltonika TSW101 4+1 Port Gigabit Unmanaged 9 - 30V DC in to 802.3af/at PoE Out Switch for Solar and Automotive Applications

TSW101

$164.00 NZD
$164.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika TSW101 4+1 port gigabit unmanaged DC to 802.3af/at PoE Switch for 9V to 30V Solar and Automotive Applications
Teltonika 4+1 port gigabit unmanaged 9 - 30V DC in upscaling POE Switch 802.3af/at out, 60W power budget or 15W per port, 9V to 30V DC in, for solar and automotive applications, No PSU. TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch.

Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards. A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications.

Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts. 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.

Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously.

Features
  • Ideal for in-vehicle solutions
  • 4 x PoE+ ports with 802.3af and 802.3at support
  • Rugged aluminum housing
  • Low input Voltage 9-30 V power range for DC to DC PoE Conversion
  • This switch can be powered by 12 V or 24 V car battery, requiring no additional PSU
Details
Product code TSW101
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PoE ports Port 1- 4
PoE standards 802.3af and 802.3at
PoE Max Power per Port (at PSE) 30 W
Total PoE Power Budget (at PSE) 60 W
Maximum Ethernet cable length 100 m
Bandwidth (Non-blocking) 10 Gbps
Packet buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes
Power Connector 2-pin industrial DC power socket
Input voltage range 9-30 VDC
Input voltage range for PoE 9-30 VDC
Power consumption Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W
Casing material Aluminum housing
Dimensions (W x H x D) 115 x 32 x 95 mm
Weight 354 g
Mounting DIN rail or wall mounting (additional kit needed), flat surface placement
Operating temperature -40 °C to +75 °C
Operating humidity 10 % to 90 % non condensing
Standards EN IEC 62368-1:2020+A11:2020
Ingress Protection Rating IP30
Details
Power Supply Not Included
