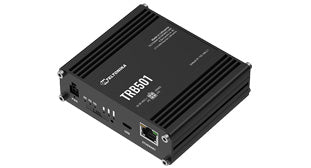

Teltonika TRB501 Industrial 2.5 Gigabit Ethernet to 4x4 MIMO 5G IoT Cellular Gateway with I/O

Teltonika TRB501 Industrial 2.5 Gigabit Ethernet to 4x4 MIMO 5G IoT Cellular Gateway with I/O

TRB501

$916.00 NZD
$916.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika TRB501 Industrial 2.5 Gigabit Ethernet to 4x4 MIMO 5G IoT Cellular Gateway with I/O
Teltonika TRB501 Industrial 2.5 Gigabit Ethernet to 4x4 MIMO 5G IoT Cellular Gateway with I/O

Experience the power of next-gen connectivity with the TRB501 Industrial 5G Gateway. Designed for demanding environments, it delivers blazing-fast, low-latency 5G for a new era of automation and efficiency. Built to push data faster with a 2.5 Gbps Ethernet and coupled with 5G carrier aggregation (3GPP Release 16), this compact device is ideal for solutions like POS systems, security installations, and IIoT applications.

Features
  • NEXT-GEN 5G with Lower latency, better spectrum use, and 5G carrier aggregation
  • Ultra-high wired data speeds of up to 2.5 Gbps Ethernet
  • Compact 5G in limited spaces without compromising performance
  • IIoT ready with Modbus, DNP3 and DLMS for SCADA, smart grid, and telemetry
Details
Product code TRB501100400
Mobile module 5G Sub-6Ghz SA/NSA: 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE: Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G: 42 Mbps DL, 5.76Mbps UL
3GPP Release Release 16
CPU Qualcomm, Single-Core, 1.5 Ghz, ARM Cortex-A7
RAM 512 MB
FLASH storage 512 MB
Bands 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32, B71; 4G (LTE-TDD): B38, B40, B41, B42, B43; 3G: B1, B3, B5, B8
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list Operator block/allow list (by country or separate operators)
Band management Band lock, Used band status display
SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Framed routing Framed routing: support an IP network behind 5G UE
Ethernet 1 x ETH port 10/100/1000/2500Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP(S), FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page View all your Firewall statistics, rules, and rule counters
Port management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology Visual representation of your network, showing which devices are connected to which other devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
Configurable I/O 2 x Configurable digital Inputs/Outputs on 4-pin power connector. Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high. Digital Output, Open collector output, max 30 V, 300 mA.
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Possibility to power up through ETH port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: < 1.5 W, Max: < 5 W
Status LEDs 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
SIM 1 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4-pin power connector
Antennas 4 x SMA for Mobile
USB 1 x Virtual network interface via micro USB
Reset Reboot/User default reset/Factory reset button
Casing material Anodized aluminum housing and panels
Dimensions 100 x 30 x 93.4 mm
Weight 241 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE, UKCA, RCM, CB, EAC, UCRF, WEEE
Details
Included TRB501 Gateway, 9 W PSU, 4x Mobile antennas (swivel, SMA male), Micro-USB cable (0.8 m), Ethernet cable, SIM Adapter kit, QSG (Quick Start Guide)
