Teltonika

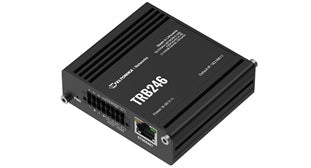

Teltonika TRB246 Cellular All-In-One Industrial M2M 4G/LTE Cat 4 Gateway with GPS, RS232, RS485 and I/O
Teltonika TRB246 Cellular All-In-One Industrial M2M 4G/LTE Cat 4 Gateway with GPS, RS232, RS485 and I/O
SKU:TRB246
Regular price
$430.00 NZD
Regular price
Sale price
$430.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Teltonika TRB246 Cellular All-In-One Industrial M2M 4G/LTE Cat 4 Gateway with GPS, RS232, RS485 and I/O
Teltonika TRB246 Industrial IoT Gateway. The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.
Features
- 4G/LTE (Cat 4), 3G, 2G
- DUAL SIM Auto-failover, backup WAN, and more switching scenarios
- Ethernet, I/Os, and serial (RS232, RS485) interfaces with 16-pin terminal block
- supports DNP3, DLMS, Modbus, and other communication protocols
- Perfect modem for 2G/3G shutdown upgrade projects
| Details | |
|---|---|
| Product code | TRB246 |
| Mobile module | 4G LTE up to 150 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps; 2G up to 296 DL/236.8 UL Kbps |
| supported Bands | 4G (LTE-FDD): B1, B21, B3, B4, B5, B7, B8, B28, 4G (LTE-TDD): B40, 3G: B1, B2, B4, B5, B8, 2G: B2, B3, B5, B8 |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, on roaming, no network, network denied, data connection fail |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Black/White list | Operator black/white list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| SIM idle protection service | When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then |
| SIM PIN code management | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Gateway assigns its mobile WAN IP address to another device on LAN |
| Ethernet | 1 x ETH port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | supported >25 service providers, others can be configured manually |
| DNS over HTTPS | DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
| Network backup | Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| RS232 | Terminal block connector: TX, RX, RTS, CTS |
| RS485 | Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface) |
| Serial functions | Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client |
| Input | 3x Configurable Digital Inputs, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high, 1x Analog input (0 - 30 V) |
| Output | 3x Configurable Digital Outputs, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
| Power Connector | 2-pin in 16-pin industrial terminal block |
| Input voltage range | 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max |
| Power consumption | Idle: < 1.5 W, Max: < 3.5 W |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 83 x 25 x 74.2 mm |
| Weight | 165 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Details | |
|---|---|
| Included | TRB246 Gateway, 16-pin terminal block, 1 x hex key, QSG (Quick Start Guide) |
