Teltonika

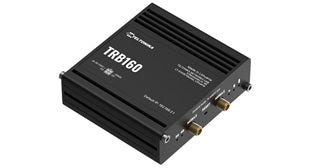

Teltonika TRB160 Industrial Gigabit Ethernet to 4G LTE Cat 6 IoT gateway
Teltonika TRB160 Industrial Gigabit Ethernet to 4G LTE Cat 6 IoT gateway
SKU:TRB160
Regular price
$393.00 NZD
Regular price
Sale price
$393.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Teltonika TRB160 Industrial Gigabit Ethernet to 4G LTE Cat 6 IoT gateway
Teltonika TRB160 Industrial Gigabit Ethernet to 4G LTE Cat 6 IoT gateway
The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.
The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.
Features
- LTE CAT6 Cellular speeds of up to 300 Mbps with carrier aggregation
- USB Type-C For simultaneous powering and network data provision
- OPC UA, Modbus, Data to Server, MQTT, DNP3, DLMS protocols, and more
- Small size, easy installation
| Details | |
|---|---|
| Product code | TRB160 |
| Mobile module | 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps |
| 3GPP Release | Release 12 |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| SIM PIN code management | SIM PIN code management enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Ethernet | 1 x ETH port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| CPU | Qualcomm, 1.2 Ghz, ARM Cortex-A7 |
| RAM | 128 MB |
| FLASH storage | 256 MB |
| I/O’s | 2 x Configurable I/O pins on 4-pin power connector |
| Status LEDs | 2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED |
| SIM | 1 x Internal SIM slot (Mini SIM – 2FF), 1.8 V/3 V, eSIM (Optional) |
| Power | 1 x 4-pin power connector, 1 x USB Type-C |
| Antennas | 2 x SMA for Mobile |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Virtual network interface via USB Type-C (For power and network data) |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 83 x 25 x 74.2 mm |
| Weight | 172 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Details | |
|---|---|
| Included | TRB160, 9 W PSU, 2 x Mobile antenna (magnetic mount, SMA male, 3 m cable), USB Type-C cable (0.8 m), 1x hex key, Ethernet cable |
