Teltonika

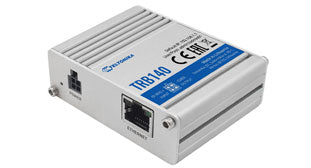

Teltonika TRB140 Industrial Ethernet to 4G LTE IoT Gateway

Teltonika TRB140 Industrial Ethernet to 4G LTE IoT Gateway

TRB140

$286.00 NZD
$286.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika TRB140 Industrial Ethernet to 4G LTE IoT gateway
The Teltonika TRB140 is an industrial 4G/LTE Cat 4 Gateway Board and is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. The TRB140’s compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.

Small and quick to deploy industrial Ethernet to 4G LTE IoT gateway. Advanced VPN functionality, security and remote management capabilities makes the Teltonkia TRB140 the best option for single device connectivity.

Features
  • Gigabit Ethernet interface
  • Wide range of power supply voltages (9 – 30V)
  • LTE Cat 4 up to 150 Mbps support
  • Teltonika Remote Management System compatible
  • Compact size, easy integration
  • OpenLinux based OS allows high software customisation
  • Remote Access your network from anywhere!
  • Perfect modem for 2G/3G shutdown upgrade projects
Details
Product code TRB140101000
Mobile LTE(Cat4)/3G/2G
SIM slot Mini SIM (2FF)
Antenna connector 1 x SMA for LTE
Ethernet 1 x 10/100/1000 Mbps
Input/Output 2 x Digital Input/Output (configurable)
CPU ARM Cortex-A7 1.2 GHz CPU
RAM 128 MB (50 MB available for userspace)
Flash 512 MB (70 MB available for userspace)
Input voltage range 9 - 30 VDC
Power connector 4 pin industrial DC power socket
Power consumption Less than 5 Watts
Configuration interface Virtual NIC via Micro-USB connector
LED Indicators Power, signal, network and data status LEDs
Operating System Linux OS with Yocto SDK (offering high software customisation)
Network NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( >25 service providers supported)
Remote management RMS support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)
Status watchdogs Ping reboot, periodic reboot
Additional features Internet connectivity over USB virtual network interface
Operating temperature -40° C to 75° C
Storage temperature -45° C to 80° C
Operating humidity 10% to 90% non-condensing
Storage humidity 5% to 95% non-condensing
Dimensions 60 mm x 70 mm x 18 mm
Weight 35.8 g
Details
Power Supply 9V 1A AC/DC Plug Pack with 4pin, 3mm pitch connector
Antenna 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
Cables Micro-USB cable (0.8 m), LAN cable
Manual QSG (Quick Start Guide)
