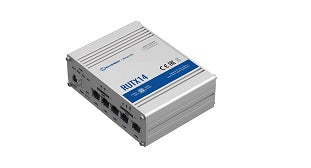

Teltonika RUTX14 Dual SIM 4G/LTE Cat 12 802.11ac IoT Wi-Fi Cellular Router with GPS and Bluetooth

Teltonika RUTX14 Dual SIM 4G/LTE Cat 12 802.11ac IoT Wi-Fi Cellular Router with GPS and Bluetooth

RUTX14

$911.00 NZD
$911.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUTX14 Dual SIM 4G/LTE Cat 12 802.11ac IoT Wi-Fi Cellular Router with GPS and Bluetooth
Teltonika RUTX14 Dual SIM 4G/LTE Cat 12 802.11ac IoT Wi-Fi Cellular Router with GPS and Bluetooth. The Teltonika RUTX14 is the fastest single modem LTE router in our portfolio. It has five Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM for advanced throughput and ultra-reliable connectivity. Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention.

The RUTX14 is a combination of fast CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity

Features
  • 4G LTE CAT12
  • Wave-2 AC Dual Band Wifi and BT
  • Dual SIM
  • RMS Compatible
  • Load Balancing
  • GNSS/GPS
Details
Product code RUTX14000000
Mobile 2 x 4G (LTE) – Cat 12 up to 600 Mbps, 3G – up to 42 Mbps
supported Bands 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41; 3G: B1, B3, B5, B8
CPU Qualcomm, 4 x ARM Cortex A7, 717 MHz
Memory 256 MBytes Flash, 256 MBytes RAM
Powering option 4 pin power socket, 9-50 VDC
SIM 2 x External SIM holders (2FF)
Antenna connectors 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
Ethernet 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
WiFi IEEE 802.11b/g/n 2.4GHz, IEEE 802.11n/ac 5GHz, Access point (AP), Station (STA)
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
Bluetooth 4.0 (Low energy)
Inputs/Outputs On 4 pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs 4 x WAN type, 2 x Connection type, 3 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
Operating temperature -40 °C to 75 °C
Housing Aluminium housing with DIN rail mounting option and grounding capability
Dimensions (W x H x D) 132 x 44 x 95 mm
Weight 515 g
Operating system RutOS (OpenWrt based Linux OS)
Network Failover (Network backup), VLAN, QoS, Load Balancing
Routing Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
Monitoring and management WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Cloud solutions RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
supported Hotspot platforms IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
Details
Power NZ AC/DC power adapter 24W 4 pin plug included
GSM/WCDMA/LTE 4 x LTE antennas (swivel, SMA male)
WiFi 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m)
GNSS 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
Bluetooth 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m)
Extras SIM needle, Ethernet cable (1.5 m), QSG (Quick Start Guide)
