Teltonika

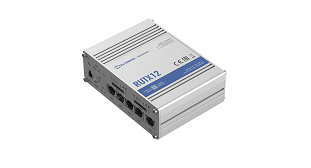

Teltonika RUTX12 Dual Concurrent Radio, Dual SIM 4G/LTE Cat 6 802.11ac IoT Cellular Router with Bluetooth

Teltonika RUTX12 Dual Concurrent Radio, Dual SIM 4G/LTE Cat 6 802.11ac IoT Cellular Router with Bluetooth

RUTX12

$977.00 NZD
$977.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUTX12 Dual Radio, Dual SIM 4G/LTE Cat 6, 802.11ac IoT Cellular Gigabit Router with GPS and Bluetooth
The Teltonika RUTX12 is a powerful Dual Radio, Dual SIM LTE Cat 6 cellular Gigabit router is designed for mission critical applications. Two simultaneously operational LTE CAT 6 modems can provide speeds up to 600 Mbps with load balancing feature. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual Band WiFi, Bluetooth LE and USB interfaces with RutOS software and security features make this device irreplaceable in applications where loosing connection is not an option.

The Teltonika RUTX12 Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Bluetooth LE also allows sensors to be connected directly to the router, thus minimizing the overall solution ecosystem.

It is a powerful and feature rich device equipped with Dual LTE Cat 6 modems, Dual-SIM, 5 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX12 comes with the RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.

Features
  • Two LTE modules working simultaneusly can provide speeds up to 600 Mbps
  • Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
  • Dual-SIM with instant failover switching
  • 5 x Gigabit Ethernet with speeds up to 1000 Mbps
  • Teltonika Remote Management System compatible
  • RutOS – easy to use, secure and feature rich Operating System
  • GPS Location
Details
Product code RUTX12000200
Mobile 2 x 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps
supported Bands 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41; 3G: B1, B3, B5, B8
CPU Quad Core ARM Cortex A7 717 MHz CPU
Memory 256 MBytes Flash, 256 MBytes DDR3 RAM
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
WiFi Dual-Band 802.11ac Wave 2 (WiFi 5) with MU-MIMO support and data transmission rates up to 867 Mbps.
Power supply 9 - 50 VDC, 4 pin DC connector, reverse polarity protection, voltage surge/transient protection
Power consumption Idle: <4 W, Max: <22 W
Connectors 1 x 4 pin DC, 5 x Ethernet, 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Operating temperature -40 °C to 75 °C
Housing Full aluminium with grounding terminal
Dimensions 115 mm x 95 mm x 44 mm
Weight 540 g
Operating system RutOS (OpenWrt based Linux OS)
SIM switch 2 SIM cards, one for each mobile module, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned)
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS, GNSS coordinates via WebUI, SMS, TAVL, RMS
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Multiple PDN Possibility to use different PDNs for multiple network access and services
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
Networking features NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Unique networking features VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover, NetSnapper(optional)
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Authentication Pre-shared key, digital certificates, X.509 certificates
Keep settings Update FW without losing current configuration
Monitoring & Management WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS, CALL, TR-069, MQTT, Modbus (slave/master/gateway/data to server)
supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
Details
Power NZ AC/DC power adapter 12V 2A 4 pin plug included
GSM/WCDMA/LTE 4 x LTE antennas (swivel, SMA male)
WiFi 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m)
GNSS 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
Bluetooth 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m)
Extras SIM needle, Ethernet cable (1.5 m), QSG (Quick Start Guide)
