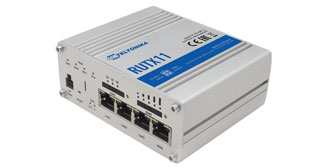

Teltonika RUTX11 LTE-A Cat6 cellular IoT 802.11ac Router

Teltonika RUTX11 LTE-A Cat6 cellular IoT 802.11ac Router

RUTX11

$771.00 NZD
$771.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUTX11 LTE-A Cat6 cellular IoT 802.11ac Router with Dual SIM
The Teltonika RUTX11 is the most feature rich among all the RUTX series devices. With a wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. The 4G (LTE) – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.

The Teltonika RUTX11 Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.

It is the most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.



Features
  • LTE Cat 6 with speeds up to 300 Mbps
  • Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
  • Dual-SIM with auto Failover, Backup WAN and other SW feature
  • Gigabit Ethernet with speeds up to 1000 Mbps
  • Teltonika Remote Management System compatible
  • RutOS – easy to use, secure and feature rich Operating System
  • GPS Location
Details
Product code RUTX11000200
Mobile 4G (LTE) – Cat 6 DL up to 300 Mbps, UL up to 50Mbps; DC-HSDPA; HSUPA; WCDMA
supported Bands 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41; 3G: B1, B3, B5, B8
CPU Quad Core ARM Cortex A7 717 MHz CPU
Memory 256 MBytes Flash, 256 MBytes DDR3 RAM
Ethernet 4 x 1 Gbit Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
WiFi Dual-Band 802.11ac Wave 2 (WiFi 5) with MU-MIMO support and data transmission rates up to 867 Mbps.
Power supply 9 - 50 VDC, 4 pin DC connector
Power consumption 11 W Max
Connectors 1 x 4 pin DC, 4 x Ethernet, 2 x Mobile SMA, 2 x WiFi RP-SMA, 1 x GPS SMA
SIM 2 x external SIM holders
Status LEDs 1 x Power, 2 x SIM, 3 x Mobile network type, 5 x Signal Strength, 2 x WiFi band status, 1 x WiFi status, 8 x Ethernet status, 4 x WAN type LEDs
Operating temperature -40 °C to 75 °C
Housing Full aluminium with grounding terminal
Dimensions 115 mm x 95 mm x 44 mm
Weight 456 g
Operating system RutOS (OpenWrt based Linux OS)
SIM switch 2 SIM cards, auto-switch cases: data limit, roaming, no network, network denied, data connection fail
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS, GNSS coordinates via WebUI, SMS, TAVL, RMS
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET (planed), EMAIL to SMS (planed), SMS to Email (planed), SMS to HTTP (planed), SMS to SMS (planed), scheduled SMS (planed), SMS autoreply (planed), SMPP (planed)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet
Networking features NAT, Static/Dynamic routing, Firewall, OpenVPN, IPSec, H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Unique networking features VLAN, Mobile quota control, WEB Filter, Load Balancing, Network Backup, Auto Failover
Connection monitoring Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Authentication Pre-shared key, digital certificates, X.509 certificates
Keep settings Update FW without losing current configuration
Monitoring & Management WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
Details
Power NZ AC/DC power adapter 9 V 1 A, 4 pin plug included
GSM/WCDMA/LTE antenna 2 x698~960/1710~2690 MHz, 50 ?, VSWR<3, gain 3 dBi, omnidirectional, SMA male connector included
GNSS antenna 1 x 1575.42~1602 MHz, 2.2~5 VDC, VSWR<1.5, active total gain** 28 dB (typ.), RHCP polarization, SMA male connector included
