Teltonika RUTX09 LTE-A Cat6 Gigabit router with Dual SIM

Teltonika RUTX09 LTE-A Cat6 Gigabit router with Dual SIM

RUTX09

$671.00 NZD
$671.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

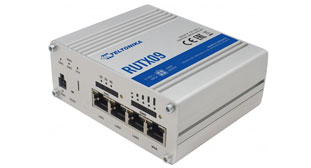

Teltonika RUTX09 LTE-A Cat6 cellular IoT router with Dual SIM
The Teltonika RUTX09 Next generation LTE-A Cat6 cellular Gigabit fail over router with Dual SIM, Carrier Aggregation, GPS location tracking and Gigabit Ethernet interfaces. Rugged and powerful choice with VPN, Firewall and plenty of processing power for custom applications on OpenWrt based RutOS system.

This powerful LTE router is designed as Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. The Teltonika RUTX09 has all advanced RutOS software, IoT and security features.

Features
  • supports LTE Cat 6 up to 300 Mbps
  • Teltonika Remote Management System compatible
  • Gigabit Ethernet with speeds up to 1000 Mbps
  • Multiple secure VPN services
  • Dual-SIM with auto Failover, Backup WAN and other SW features
  • Easy to use, secure and feature rich OpenWrt based Operating System
  • SDK package with build environment provided
  • Wide voltage range (9-50 V)
  • USB Storage formats FAT, FAT32, NTFS
Details
Product code RUTX09000300
Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
supported Bands 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41; 3G: B1, B3, B5, B8
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
Bridge Direct connection (bridge) between mobile ISP and device on LAN
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
Server software supported server software TAVL, RMS
Mobile Network Geolocation Location without using GPS, get approximate location based on mobile tower on RMS
Geofencing Configurable multiple geofence zones
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps, 1 x WAN and 3 x LAN
Status LEDs 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power 4 pin industrial DC power socket
Power Consumption 11 Watt Max
Antennas 2 x SMA for LTE, 1 x SMA for GNNS
USB USB A port for external devices
Reset Reset/restore to default button
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 44 mm (H x W x D)
Weight 456 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
Operating temperature -40 C to 75 C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Details
Power NZ AC/DC power adapter 9 V 1 A, 4 pin plug included
GSM/WCDMA/LTE antenna 2 x698~960/1710~2690 MHz, 50 ?, VSWR<3, gain 3 dBi, omnidirectional, SMA male connector included
GNSS antenna 1 x 1575.42~1602 MHz, 2.2~5 VDC, VSWR<1.5, active total gain** 28 dB (typ.), RHCP polarization, SMA male connector included
