Teltonika

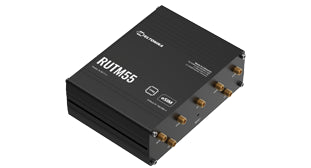

Teltonika RUTM55 Dual SIM 5G Gigabit Wi-Fi Router with Serial, IO and Ethernet
Teltonika RUTM55 Dual SIM 5G Gigabit Wi-Fi Router with Serial, IO and Ethernet
SKU:RUTM55
Regular price
$1,277.00 NZD
Regular price
Sale price
$1,277.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Teltonika RUTM55 Dual SIM and eSIM 5G Gigabit Wi-Fi Router with Serial, IO and Ethernet
Teltonika RUTM55 Dual SIM and eSIM 5G Gigabit Wi-Fi Router with Serial, IO and Ethernet
Bring 5G to your industrial networks with RUTM55. This advanced router delivers ultra-high 5G speeds (up to 3.4 Gbps) coupled with versatile 4 x Gigabit Ethernet and Wi-Fi 5 connectivity options. Ensure maximum uptime with dual SIM/eSIM auto-failover. Connect legacy RS232/RS485 devices directly, protecting investments and modernizing infrastructure. Tailored for industrial demands via 3-PIN power input, RUTM55 provides robust, future-proof reliability.
Bring 5G to your industrial networks with RUTM55. This advanced router delivers ultra-high 5G speeds (up to 3.4 Gbps) coupled with versatile 4 x Gigabit Ethernet and Wi-Fi 5 connectivity options. Ensure maximum uptime with dual SIM/eSIM auto-failover. Connect legacy RS232/RS485 devices directly, protecting investments and modernizing infrastructure. Tailored for industrial demands via 3-PIN power input, RUTM55 provides robust, future-proof reliability.
Features
- 5G Ultra-high cellular speeds of up to 3.4 Gbps
- DUAL SIM & eSIM Auto-failover, backup WAN, and other switching scenarios
- Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
- 3-PIN Power Input Tailored for industrial use
| Details | |
|---|---|
| Product code | RUTM55000000 |
| CPU | MediaTek, Dual-Core, 880 MHz, MIPS1004Kc |
| RAM | 256 MB, DDR3 |
| FLASH storage | 16 MB serial NOR flash, 256 MB serial NAND flash |
| Mobile module | 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps |
| 3GPP Release | Release 16 |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| SIM switch | Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO) |
| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
| I/O’s | 1 x digital dry input, 1 x digital galvanically isolated input, 1 x analog input, 1 x Isolated open collector output, 1 x SPST relay output |
| Status LEDs | 3 x Mobile connection type, 3 x Mobile connection strength, 6 x LAN status, 1 x Power |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, internal SIM holders |
| Power | 1 x 3-pin power connector |
| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| RS232 | 2 pins in 16-pin terminal block |
| RS485 | 2 pins in 16-pin terminal block |
| Reset | Reboot/User default reset/Factory reset button |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VPN | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| Input | 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 50 V), 1 x analog input (0 - 24 V) |
| Output | 1 x Isolated open collector output (requires external voltage) (50 V, 500 mA), 1 x SPST relay output (24 V, 10 A) |
| Events | Email, RMS, SMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
| Power Connector | 3-pos plugable terminal block |
| Input voltage | range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (passive) | Passive PoE over Port 1; 9-50VDC; "Mode B" style. Not compatible with 802.3af/at/bt. |
| Power consumption | Idle: < 8.5 W, Max: < 14.5 W |
| Casing material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 95 mm |
| Weight | 430 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection | Rating IP30 |
| Regulatory | CE, UKCA, CB, EAC, UCRF, RCM, R-NZ, WEEE |
| Details | |
|---|---|
| Included | RUTM55 Router, 3-pin power connector, 2X8PIN Connector, Hex key, SIM Adapter kit, QSG (Quick Start Guide) |
| Antennas | Sold Separately |
