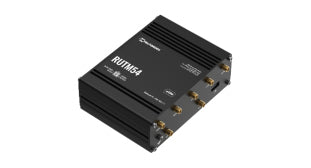

Teltonika RUTM54 Industrial 5G Wi-Fi Gigabit Router with Dual SIM and ESIM

Teltonika RUTM54 Industrial 5G Wi-Fi Gigabit Router with Dual SIM and ESIM

RUTM54

$1,444.00 NZD
$1,444.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Teltonika RUTM54 Industrial Cellular 5G Wi-Fi Gigabit Router with Dual SIM plus eSIM
Teltonika RUTM54 Industrial Cellular 5G Wi-Fi Gigabit Router with Dual SIM, Dual Radio plus eSIM.

The RUTM54 is a high-performance, dual-SIM and eSIM 5G router, ideal for data-intensive applications that demand reliable, high-speed connectivity. With a global Telit 5G modem, the RUTM54 delivers exceptional connectivity and consistent performance. Its 5 Gigabit Ethernet ports and dual-band Wi-Fi provide robust redundancy, while auto-failover ensures uninterrupted service. With backward compatibility to 4G and multiple interface options, the RUTM54 is designed for seamless expandability and future upgrades.



Features
  • 5G - Ultra-high cellular speeds of up to 3.4 Gbps
  • DUAL SIM & eSIM - With auto failover, backup WAN and other switching scenarios
  • supports both SA & NSA architectures to leverage the 5G infrastructure
  • Enjoy Remote Management with Teltonika RMS
Details
Product code RUTM54
Mobile module 5G Sub-6Ghz SA/NSA 2.5/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL; 3G – 42 Mbps DL, 5.7Mbps UL
3GPP Release Release 16
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi-Fi users Up to 150 simultaneous connections
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
VPN OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MODBUS Server or Client, HTTP(S)/MQTT/Azure MQTT
CPU MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Geofencing Configurable multiple geofence zones
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Status LEDs 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power 1 x 4-pin power connector
Antennas 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 132 x 44.2 x 95 mm
Weight 530 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Details
Included RUTM54 Router
Power 18 W PSU
Antennas 4 x Mobile antennas (swivel, SMA male), 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
Cable Ethernet cable (1.5 m)
Other SIM Adapter kit, QSG (Quick Start Guide)
