Teltonika

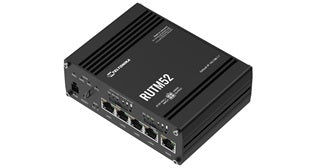

Teltonika RUTM52 Industrial 5G Wi-Fi Gigabit Router with Dual Radio, Dual SIM and eSIM Support and 4G LTE Cat 20 fallback

Teltonika RUTM52 Industrial 5G Wi-Fi Gigabit Router with Dual Radio, Dual SIM and eSIM Support and 4G LTE Cat 20 fallback

RUTM52

$2,417.00 NZD
$2,417.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Teltonika RUTM52 Industrial 5G Wi-Fi Gigabit Router with Dual Radio, Dual SIM and eSIM Support and 4G LTE Cat 20 fallback
Teltonika RUTM52 Industrial 5G Wi-Fi Gigabit Router with Dual Radio, Dual SIM and eSIM support and 4G LTE Cat 20 fallback.

The Teltonika RUTM52 is a future-proof 5G router designed for mission-critical applications, featuring dual 5G modems, multi-WAN capabilities, and 4G LTE Cat 20 fallback. With dual SIM slots, eSIM support, and compatibility with SA and NSA 5G architectures, it ensures high-speed, uninterrupted connectivity today and years ahead. Load balancing, Wi-Fi 5, and five Gigabit Ethernet ports enhance performance, while RutOS with industrial protocols and various VPNs make it versatile for complex setups. Compatible with RMS, the RUTM52 is ideal for secure and efficient remote management.
Features
  • Dual 5G Modem Up to double cellular speeds and always-on connection
  • Dual SIM & eSIM with auto failover, backup WAN and other switching scenarios
  • SA & NSA supports both architectures to leverage the 5G infrastructure
Details
Product code RUTM52100400
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
Mobile module 2 x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO) 900/600Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 20 2.0Gbps (4x4 MIMO)/UL Cat 20 200Mbps; 3G: 42 Mbps DL, 5.76Mbps UL
3GPP Release Release 16
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Wi-Fi mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power 1 x 4-pin power connector
Antennas 8 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
Reset Reboot/User default reset/Factory reset button
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MODBUS supported modes Server, Client
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
Input 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: < 5 W, Max: < 13 W
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 132 x 44.2 x 95.1 mm
Weight 560 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 60 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory & Type Approvals CE, UKCA, RCM, FCC, IC, EAC, UCRF, WEE
Details
Included RUTM52 Router, 18 W PSU, 8 x 5G Mobile antennas (magnetic mount, SMA male), 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), 1 x GNSS antenna (adhesive, SMA male, 3 m cable), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
