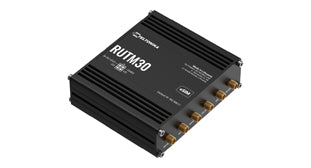

Teltonika RUTM30 Compact 5G Gigabit Dual Band Wi-Fi Router with eSIM

Teltonika RUTM30 Compact 5G Gigabit Dual Band Wi-Fi Router with eSIM

RUTM30ESIM

$1,023.00 NZD
$1,023.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUTM30 Compact 5G Gigabit Dual Band Wi-Fi Router with eSIM
Teltonika RUTM30 Compact 5G Gigabit Dual Band Wi-Fi Router with eSIM

The Teltonika RUTM30 is a compact, dual-SIM, multi-network router with eSIM™ that delivers 5G mobile connectivity for data-intensive applications. Equipped with two Gigabit Ethernet ports and dual-band Wi-Fi, it offers data connection redundancy with auto-failover. Its backward compatibility with LTE Cat 19 and multiple interfaces ensure long-term network expandability and simple upgrades. The RUTM30 is ideal for various IoT and M2M solutions that demand high-speed connectivity, easy setup, and remote access.

Features
  • CONNECTIVITY - 5G, 4G Cat19, 3G
  • DUAL SIM - With auto failover, backup WAN, and other switching scenarios
  • eSIM™ - Seamless connectivity with eSIM™ SGP.22
  • SA & NSA - supports both architectures to leverage the 5G infrastructure
Details
Product code RUTM30000500
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
Mobile module 5G Sub-6Ghz SA/NSA: 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE: Cat 19 1.6Gbps DL, Cat 18 200Mbps UL; 3G: 42 Mbps DL, 5.76Mbps UL
3GPP Release Release 16
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch 2 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Ethernet 2 x RJ45 ports, 10/100/1000 Mbps
I/O’s 2 x Configurable digital I/O on 4-pin power connector
Status LEDs 1 x Mobile connection type(RGB), 1 x Mobile connection strength(RGB), 4 x LAN status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, internal SIM holders
Power 1 x 4-pin power connector
Antennas 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi
Reset Reboot/User default reset/Factory reset button
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Configurable I/O 2 x Configurable digital Inputs/Outputs on 4-pin power connector. Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high. Digital Output, Open collector output, max 30 V, 300 mA.
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: 3.9 W, Max: 9 W
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 100 x 30 x 93.7 mm
Weight 319 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE, UKCA, CB, EAC, UCRF, RCM, R-NZ, WEEE
Details
Included RUTM30ESIM Router, 18 W PSU, 4 x 5G Straight Compact Mobile Antennas (SMA Male), 2 x Wi-Fi Dual-Band Magnetic RP-SMA Antennas, Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
