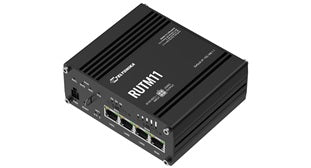

Teltonika RUTM11 4G LTE Cat 6 Cellular Wi-Fi Router with Dual SIM and GNSS

Teltonika RUTM11 4G LTE Cat 6 Cellular Wi-Fi Router with Dual SIM and GNSS

RUTM11

$630.00 NZD
$630.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUTM11 4G LTE Cat 6 Cellular Wi-Fi Router with Dual SIM and GNSS
Teltonika RUTM11 4G LTE Cat 6 Cellular Wi-Fi Router with Dual SIM and GNSS

The Teltonika RUTM11 is an industrial LTE router from Teltonika, designed for applications that demand high data throughput and a robust network connection with zero tolerance for high latency and interruptions. The RUTM11 comes equipped with four Gigabit RJ45 ports, dual-band 802.11ac Wi-Fi, and dual SIM capabilities, enabling multiple failover scenarios. This router features LTE Cat 6, allowing it to achieve cellular speeds of up to 300 Mbps, which can be increased with carrier aggregation.



Features
  • Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
  • 4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
  • GNSS Location services and time synchronisation for precise data reading
  • Dual-band Wi-Fi with mesh and fast-roaming functionalities
Details
Product code RUTM11000300
Mobile module 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release Release 12
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Band management Band lock, Used band status display
SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LANWireless mode
CPU MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
802.1x Port-based network access control client
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software supported server software TAVL, RMS
Geofencing Configurable multiple geofence zones
Input 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: < 3.9 W, Max: < 12.3 W
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Antennas 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
Weight 460 g
Mounting options DIN rail, wall mount, flat surface (all require additional optional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Details
Included 1 x Router RUTM11, 18 W PSU, 2x Mobile antennas (swivel, SMA male), 2x Wi-Fi antennas (swivel, RP-SMA male), 1x GNSS antenna (adhesive, SMA male, 3 m cable), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
