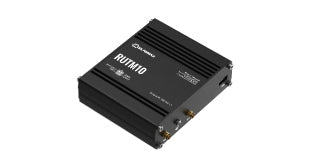

Teltonika RUTM10 Gigabit WiFi Router with M2M Functionality

Teltonika RUTM10 Gigabit WiFi Router with M2M Functionality

RUTM10

$263.00 NZD
$263.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUTM10 Gigabit WiFi 5 Router with M2M Functionality and VPN Support
Teltonika RUTM10 Gigabit WiFi 5 Router with M2M Functionality and VPN support

The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.

Features
  • Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
  • Numerous VPN Protocols supported, including OpenVPN, IPsec, and Tailscale
  • 4x Gigabit Ethernet with speeds up to 1000 Mbps
  • Teltonika Remote Management System compatible
  • Multiple industrial protocols supported, including MQTT, Modbus, DNP3, DLMS
  • RutOS – easy to use, secure and feature rich Operating System
Details
Product code RUTM10
Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
VPN OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MODBUS Server/Client Mode, TCP/USB Connection, HTTP(S)/MQTT/Azure MQTT data to server
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
Input 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Status LEDs 8 x LAN status, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
Power 1 x 4-pin power connector
Antennas 2 x RP-SMA for Wi-Fi
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 115 x 32.2 x 95.2 mm
Weight 359 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Details
Router RUTM10
Power 18W PSU
Antennas 2 x WiFi antennas (swivel, RP-SMA male)
Cable Ethernet (1.5 m)
