Teltonika

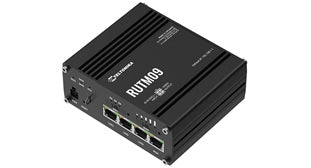

Teltonika RUTM09 LTE-A Cat6 Gigabit cellular IoT router with Dual SIM

Teltonika RUTM09 LTE-A Cat6 Gigabit cellular IoT router with Dual SIM

RUTM09

$554.00 NZD
$554.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUTM09 LTE-A Cat6 Gigabit cellular IoT router with Dual SIM
The Teltonika RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.



Features
  • Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
  • Equipped with failover and carrier aggregation for uninterrupted, high-data throughput
  • 4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
  • GNSS Location services and time synchronisation for precise data reading
Details
Product code RUTM09
Mobile module 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release Release 12
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
CPU MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
Status IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD supports sending and reading Unstructured Supplementary Service Data messages
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
USB Data rate USB 2.0
Input 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: < 2.65 W, Max: < 9.82 W
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x WAN type LEDs, 3 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Antennas 2 x SMA for Mobile, 1 x SMA for GNSS
Reset Reboot/User default reset/Factory reset button
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
Weight 457 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE, UKCA, RCM, CB
Details
Included Router RUTM09, 18 W PSU, 2x Mobile antennas (swivel, SMA male), 1x GNSS antenna (adhesive, SMA male, 3 m cable), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
