Teltonika RUTM08 Iindustrial Gigabit 4 Port Ethernet VLAN Router

Teltonika RUTM08 Iindustrial Gigabit 4 Port Ethernet VLAN Router

RUTM08

$207.00 NZD
$207.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

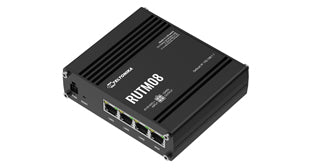

Teltonika RUTM08 Iindustrial Gigabit 4 Port Ethernet VLAN Router
The Teltonika RUTM08 is an industrial wired router designed for establishing reliable cable connections across a broad range of industrial applications. The router has four Gigabit RJ45 ports, which enable rapid network and data transmission between connected endpoints. The RUTM08 can support up to 128 tag/port-based VLANs for enhanced network flexibility as well as multiple VPNs and M2M communication protocols, which are particularly relevant in industrial environments.



Features
  • 4 x Gigabit RJ45 ports with up to 128 tag/port-based VLANs supported
  • Numerous VPN Protocols supported, including Tailscale, OpenVPN, IPsec, ZeroTier, and more
  • Multiple industrial M2M protocols supported, including MQTT, Modbus, DNP3, DLMS
  • RMS For remote management, access & VPN services
Details
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS supported >77 service providers, others can be configured manually
Network backup VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Monitoring & Management WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
USB USB 2.0 Type A
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 50 V, 300 mA
Events Email, RMS
I/O juggler Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption Idle: < 1.8 W / Max: < 5.5 W
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 8 x LAN status LEDs, 1 x Power LED
Power 1 x 4-pin power connector
Reset Reboot/User default reset/Factory reset button
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 115 x 32.2 x 95.2 mm
Weight 353 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE, UKCA, RCM, CB, UN ECE R10 (E-mark)
Details
Included Router RUTM08, 18 W PSU, Ethernet cable (1.5 m), QSG (Quick Start Guide)
