Teltonika

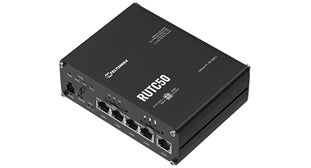

Teltonika RUTC50 V2 Dual SIM Cellular 4G/LTE/5G Gigabit Wi-Fi 6 Broadband Router with I/O and GPS

Teltonika RUTC50 V2 Dual SIM Cellular 4G/LTE/5G Gigabit Wi-Fi 6 Broadband Router with I/O and GPS

RUTC50V2

$1,674.00 NZD
$1,674.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Teltonika RUTC50 V2 Dual SIM Cellular 4G/LTE/5G Gigabit Wi-Fi 6 Broadband Router with I/O and GPS
Teltonika High Speed RUTC50 V2 Dual SIM Cat 19 Cellular 4G/LTE/5G Gigabit Wi-Fi 6 Broadband Router with I/O and GPS

Unleash the full potential of your edge applications with the RUTC50 5G router. This compact powerhouse combines ultra-fast 5G (up to 3.4 Gbps), dual-band Wi-Fi 6, and enhanced processing power with 1GB RAM and 8GB flash memory. Featuring dual SIM and eSIM for global, touch-free deployments, the RUTC50 delivers lightning-fast, low-latency communication for mission-critical operations. Rugged, powerful, and future-ready.

Features
  • 5G Ultra-high cellular speeds of up to 3.4 Gbps
  • Wi-Fi 6 Dual-band multi-user MIMO for superior wireless performance
  • 1GB RAM and 8GB flash for edge computing applications
  • eSIM Global, touch-free deployments
Details
Product code RUTC50210300
CPU Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
RAM 1GB DDR4
FLASH storage 16MB serial NOR flash, 8GB eMMC
supported Frequencies 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41, B42, B43
Mobile module 5G Sub-6 Ghz SA/NSA 2.4/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6 Gbps DL, Cat 18 200 Mbps UL; 3G – 42 Mbps DL, 5.76 Mbps UL
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
3GPP Release Release 16
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Framed routing Framed routing: support an IP network behind 5G UE
Wireless mode 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU-MIMO)
Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 4 x WAN status LEDs, 3 x Mobile connection type, 3 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi, 2 x WAN status
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM
Antennas 4 x SMA for Mobile, 3 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
RMS Update FW/configuration for multiple devices at once
Monitoring & Management WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
I/O Input 1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
I/O Output 1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC (Available from: HW revision 0003, Batch number 007)
Power consumption Idle: < 5.6 W, Max: < 20.2 W
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 130.4 x 42.6 x 103.4 mm
Weight 452 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Regulatory CE/RED, UKCA, CB, RCM, EAC, UCRF, WEEE
Details
Included RUTC50_V2 Router, 24 W PSU, 4 x 5 G Mobile antennas (swivel, SMA male), 3 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), 1 x GNSS antenna (adhesive, SMA male, 3 m cable), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
