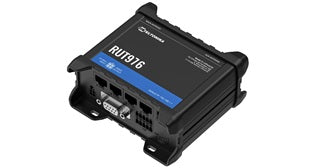

Teltonika RUT976 5G RedCap Cellular Router with Wi-Fi, GNSS and Serial interfaces

Teltonika RUT976 5G RedCap Cellular Router with Wi-Fi, GNSS and Serial interfaces

RUT976

$800.00 NZD
$800.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUT976 5G RedCap Cellular Router with Wi-Fi, GNSS, RS232, RS485 and multiple I/Os
Teltonika RUT976 5G RedCap Cellular Router with Wi-Fi, GNSS, RS232, RS485 and multiple I/Os

The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment

Features
  • REDCAP 5G Low latency, high capacity, affordable pricing
  • Backward compatible with 4G LTE Cat 4
  • DUAL-SIM With auto-failover, backup WAN and other switching scenarios
  • Multiple interfaces including Ethernet, RS232, RS485, & multiple I/Os
Details
Product code RUT976000200
Mobile module 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
3GPP Release Release 17 RedCap
Bands 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79; 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71; 4G (LTE-TDD): B34, B38, B39, B40, B41, B42, B43, B48
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD supports sending and reading Unstructured Supplementary Service Data messages
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 32 MB, NOR Flash
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
RS232 DB9 connector, RS232 (with RTS, CTS flow control)
RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
USB Data rate USB 2.0
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
SD Card Micro SD (internal)
Power consumption Idle: < 3 W, Max: < 7 W
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Power 1 x 4-pin power connector
Input/output 1 x 10-pin industrial socket for inputs/outputs
Antennas 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button
Casing material Aluminum housing, plastic panels
Dimensions (W x H x D) 110 x 50 x 100 mm
Weight 295 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory WEEE
Details
Includes RUT976 router, 9 W PSU, 2x 5G Mobile antennas (swivel, SMA male), 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), GNSS antenna (adhesive, SMA male, 3 m cable), RS485 connector block, I/O connector block, Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
