Teltonika

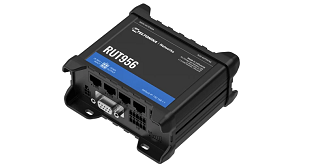

Teltonika RUT956 Dual SIM 4G/LTE Router with Serial, IO and Ethernet

Teltonika RUT956 Dual SIM 4G/LTE Router with Serial, IO and Ethernet

RUT956

$579.00 NZD
$579.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUT956 Dual SIM 4G/LTE Router with Serial, IO and Ethernet
Teltonika RUT956 Dual SIM LTE Router with Serial, IO and Ethernet. RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

Features
  • 4G LTE (Cat 4), 3G, 2G
  • Dual SIM With auto failover, backup WAN and other switching scenarios
  • Multiple Interfaces - Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
  • GNSS Global Navigation Satellite System for location services and time synchronization
  • Perfect router for 2G/3G shutdown upgrade projects
Details
Product code RUT956700700
Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
CPU Mediatek MIPS 24Kc 580 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
Ethernet WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Ethernet LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard
Modbus MODBUS TCP SLAVE, MODBUS TCP MASTER, MODBUS RTU MASTER (RS232), MODBUS RTU MASTER (RS485), MODBUS DATA TO SERVER
MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Power Connector 4-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
Power consumption < 2 W idle, < 7 W Max
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Standards EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019
Details
Includes 9 W PSU, 2 x LTE antennas (magnetic mount, SMA male, 3 m cable), 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable), GNSS antenna (adhesive , SMA male, 3 m cable), RS485 connector block, I/O connector block, Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
