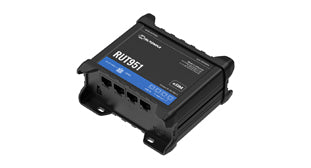

Teltonika RUT951POE+ Dual SIM and eSIM 4G/LTE Wi-Fi Ethernet Router PoE Out and IO

Teltonika RUT951POE+ Dual SIM and eSIM 4G/LTE Wi-Fi Ethernet Router PoE Out and IO

RUT951_POEPLUS

$614.00 NZD
$614.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUT951POE+ Dual SIM and eSIM 4G/LTE Wi-Fi Ethernet Router PoE Out and IO
Teltonika RUT951POE+ Dual SIM 4G/LTE Wi-Fi Router, IO, Ethernet, PoE Out and eSIM

Building on the success of our bestseller 4G router, this enhanced version now features versatile Power over Ethernet (PoE+) capability. This robust router boasts dual SIM and eSIM, reliable Wi-Fi, and four PoE+ Ethernet ports. Powered by RutOS and designed for diverse IoT deployments, the RUT951 PoE+ ensures seamless data transmission and simplifies power management for your connected IoT solutions.

Features
  • 4G LTE (Cat 4), 3G, 2G
  • DUAL SIM & eSIM With auto failover, backup WAN and other switching scenarios
  • PoE+ Total power budget of 90W
  • supports 802.3af/at (POE+) Output on LAN2, LAN3, WAN
  • Wireless Access Point with Hotspot functionality
Details
Product code RUT951610R00
CPU Mediatek MIPS 24Kc 580 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
Mobile module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
Frequencies 4G (LTE-FDD):B1, B3, B4, B5, B7, B8, B28; 4G (LTE-TDD): B40
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless mode IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
POE IN Port 1 (LAN1), 802.3af/at compliant PD port
POE OUT Port 2 - 4 (LAN2, LAN3, WAN), IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2) compliant PSE ports
PoE Max Power per Port (at PSE) 30 W Max
PoE Power Budget (at PSE) 90 W
Connector 4-pin industrial DC power socket
Input voltage range 9 – 57 VDC, reverse polarity protection, surge protection >58 VDC 10us max
Input voltage range for PoE 48 – 57 VDC
Power consumption Idle: < 5 W, Max: < 6.5 W, PoE Max: 100 W
Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
Reset Reboot/User default reset/Factory reset button
Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 110 x 50 x 100 mm
Weight 287 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE, UCRF, EAC, UKCA, RCM, WEEE
Details
Included Router RUT951 PoE+, 2x Mobile antennas (swivel, SMA male), 2x Wi-Fi antennas (swivel, RP-SMA male), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
