Teltonika

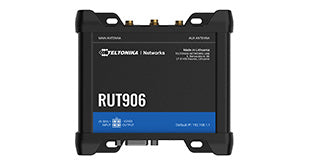

Teltonika RUT906 Dual SIM 4G/LTE Cat 4 Router with Serial, IO and Ethernet

Teltonika RUT906 Dual SIM 4G/LTE Cat 4 Router with Serial, IO and Ethernet

RUT906

$459.00 NZD
$459.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUT906 Dual SIM 4G/LTE Cat 4 Router with Serial, IO and Ethernet
Teltonika RUT906 Dual SIM 4G/LTE Cat 4 Router with Serial, IO and Ethernet is designed for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.
Features
  • 4G LTE (Cat4) Connectivity
  • Dual SIM with Auto-failover, backup WAN and more switching scenarios
  • Serial interfaces (RS232 & RS485), MQTT, BACnet, OPC UA, I/Os, Ethernet, and more
  • GNSS NTRIP, location services and time synchronization
  • Remote management with Teltonika RMS
Details
Product code RUT906000800
Mobile 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
CPU Mediatek, 580 MHz, MIPS 24KEc
Memory 128 MB, DDR2
Storage 16 MB, SPI Flash
Powering Options 4-pin industrial DC power socket, 9 - 30 VDC
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
SD Card Micro SD (internal)
Antenna Connectors 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
Ethernet 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
Wi-Fi IEEE 802.11b/g/n, Access Point (AP), Station (STA)
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Inputs/Outputs 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Serial 1 x RS232, 1 x RS485
Other 1 x USB host
Status LEDs 1 x bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
Operating Temperature -40 °C to 75 °C
Housing Aluminium housing, plastic panels
Dimensions (W x H x D) 109.5 x 50 x 100 mm
Weight 295g
Regulatory CE, UKCA, RCM, CB, E-mark
Details
Included Router RUT906, 9 W PSU, 2x Mobile antennas (magnetic mount, SMA male, 3 m cable), 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable), GNSS antenna (adhesive, SMA male, 3 m cable), RS485 connector block, I/O connector block, Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
