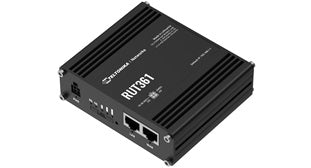

Teltonika RUT361 4G/LTE Cellular CAT 6 WiFi Router with Digital I/O

Teltonika RUT361 4G/LTE Cellular CAT 6 WiFi Router with Digital I/O

RUT361

$500.00 NZD
$500.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUT361 4G/LTE Cellular CAT 6 WiFi Router with Digital I/O
Teltonika RUT361 4G/LTE Cellular CAT 6 WiFi Router with Digital I/O.

The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.

Features
  • 4G LTE CAT 6 Cellular speeds of up to 300Mbps with carrier aggregation
  • Wi-Fi 4 wireless access point with hotspot functionality
  • WAN failover Automatic switching to available backup connection
  • RMS For remote management, access & VPN services
Details
Product Code RUT361100300
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB serial NOR flash
Mobile module 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release Release 12
Bands 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B321, 4G (LTE-TDD): B38, B40, B41, B42, B43
SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless mode 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)
WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Inputs Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
Load balancing Balance Internet traffic over multiple WAN connections
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MODBUS supported modes Server, Client
DATA TO SERVER Protocol HTTP(S), MQTT, Azure MQTT
Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data
Monitoring & Management WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
Power Connector 4-pin industrial DC power socket
Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE (Optional - different hardware required; contact your sales manager)
Power consumption Idle: < 2.4 W, Max: < 4.7 W
I/O’s 2 x Configurable I/O pins on 4-pin power connector
Status LEDs 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power
SIM 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi
Reset Reboot/User default reset/Factory reset button
Casing material Aluminium housing
Dimensions (W x H x D) 100 x 30 x 85 mm
Weight 243 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE, UKCA,FCC, IC, RCM, CB, WEEE, RoHS, REACH
Details
Included Router RUT361, 18 W PSU, 2x Mobile antennas (swivel, SMA male), 2x Wi-Fi antennas (swivel, RP-SMA male), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
