Teltonika

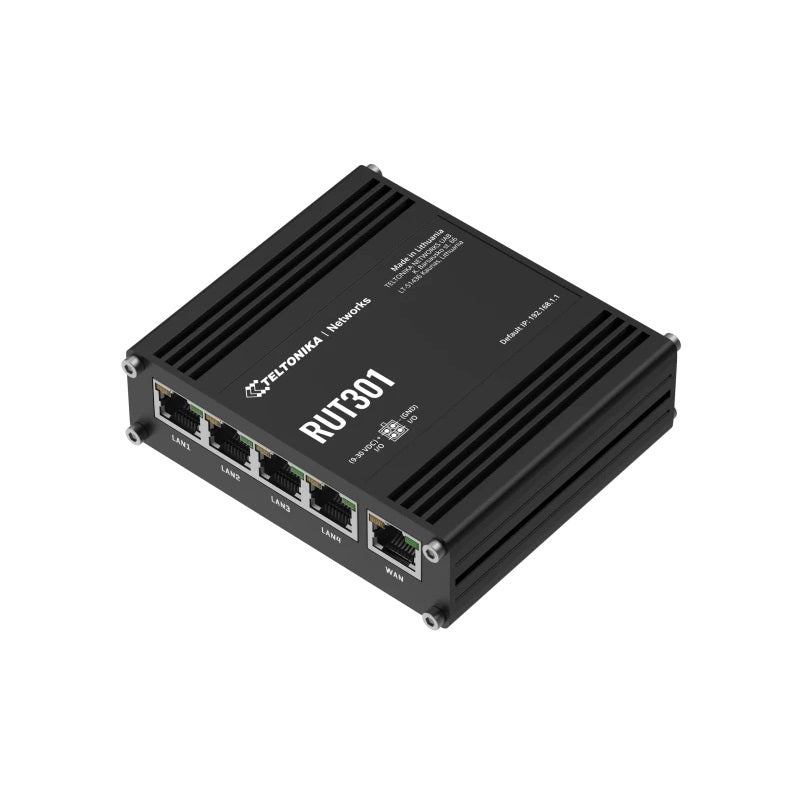

Teltonika RUT301 Industrial 5 port Ethernet Router
Teltonika RUT301 Industrial 5 port Ethernet Router
SKU:RUT301
Regular price
$105.00 NZD
Regular price
Sale price
$105.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Quantity
Couldn't load pickup availability
Teltonika RUT301 Industrial 5 port Ethernet Router with Configurable Digital Inputs/Outputs and USB 2.0
Teltonika RUT301 Industrial 5 port Ethernet Router with Digital I/Os, and USB 2.0
The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.
The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.
Features
- 5 x Ethjavascript:void("help")ernet ports (10/100 Mbps), Digital I/Os, and USB 2.0
- RMS For remote management, access & VPN services
- Pre-configured firewall and multiple VPN services
- Industrial-grade design for withstanding harsh environments
| Details | |
|---|---|
| Product code | RUT301000500 |
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
| LAN | 4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules |
| Firewall status page | View all your Firewall statistics, rules, and rule counters |
| Ports management | View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on |
| Network topology | Visual representation of your network, showing which devices are connected to which other devices |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | supported >25 service providers, others can be configured manually |
| Network backup | VRRP, Wired options, each of which can be used as an automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of SSH, Web interface, CLI and Telnet |
| VPN | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| OPC UA supported modes | Client, Server (TCP) |
| MODBUS | Yes |
| DATA TO SERVER | HTTP(S), MQTT, Azure MQTT |
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| DNP3 supported modes | Station, Outstation via TCP, USB |
| DLMS support | Standard protocol for utility meter data exchange, Client via TCP, USB |
| Teltonika Networks Web API support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. |
| Cloud of Things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
| Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP |
| Azure IoT Hub | Allows monitoring of: Wan IP, Number of bytes send/received, Model, Manufacturer, Serial, Revision, FW version and collected data of industrial devices |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB serial NOR flash |
| Events | Email, RMS |
| I/O juggler | Allows to set certain I/O conditions to initiate event |
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
| I/O’s | 2 x Digital Input, 2 x Digital Output on 4-pin power connector |
| Status LEDs | 1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED |
| Power | 1 x 4-pin power connector |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Operating temperature | -40 °C to 75 °C |
| Details | |
|---|---|
| Contains | 1 x RUT301, 9W PSU, 1.5m LAN cable, QSG |
