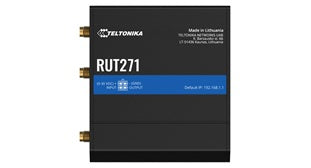

Teltonika RUT271 Industrial 5G RedCap Cellular Wi-Fi Router

Teltonika RUT271 Industrial 5G RedCap Cellular Wi-Fi Router

RUT271

$648.00 NZD
$648.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUT271 Industrial 5G RedCap Cellular Wi-Fi Router with Digital IO
Teltonika RUT271 Industrial 5G RedCap Cellular Wi-Fi Router with Digital IO.

The Teltonika RUT271 is a Redcap 5G router, bridging the gap between 4G and full-capacity 5G. supporting SA architecture, this 5G router can wirelessly support up to 50 end devices and features the low latency of 5G—at affordable pricing. The RUT271 supports Wi-Fi and is backward compatible with 4G LTE Cat 4. This industrial-grade RedCap 5G router is also equipped with WAN failover, two 10/100 RJ45 ports, a compact and durable design, and numerous other brilliant features for expert professional deployment.
Features
  • REDCAP 5G Low latency, high capacity, affordable pricing
  • Backward compatible with 4G LTE Cat 4
  • Wireless access point with Hotspot functionality
  • Automatic switching to available backup connection with WAN failover
Details
Product code RUT271002000
Mobile module 5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
3GPP Release Release 17 RedCap
Bands 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79: 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71: 4G (LTE-TDD): B34, B38, B39, B40, B41, B42, B43, B48
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 32 MB, NOR Flash
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD supports sending and reading Unstructured Supplementary Service Data messages
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Monitoring & Management WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Power Connector 4-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: < 1.5 W, Max: < 3 W
Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
Antennas 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
Reset Reboot/User default reset/Factory reset button
Casing material Aluminum housing, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 130 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE, FCC, ISED, CB, WEEE
Details
Includes Router RUT271, 9 W PSU, 2x Mobile 5G antennas (swivel, SMA male), 1x Wi-Fi antenna (swivel, RP-SMA male), Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
