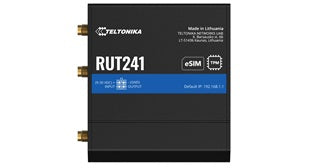

Teltonika RUT241 eSIM Industrial 4G/LTE WiFi Cellular Router with Digital IO

Teltonika RUT241 eSIM Industrial 4G/LTE WiFi Cellular Router with Digital IO

RUT241ESIM

$399.00 NZD
$399.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika RUT241 eSIM Industrial 4G/LTE WiFi Cellular Router with Digital IO
Teltonika RUT241eSIM Industrial 4G/LTE WiFi Cellular Router with Digital IO. The RUT241 eSIM™ is an industrial cellular router equipped with LTE Cat 4 and eSIM™ with SGP.22 pull-based consumer architecture. This compact eSIM™ router supports a physical SIM card, up to seven eSIM™ profiles, controlled via WebUI and RMS, and Trusted Platform Module (TPM) for enhanced security. The RUT241 eSIM™ router provides undisrupted connectivity with automatic WAN failover and two Ethernet ports, making it perfect for your M2M and IoT solutions.

Features
  • 4G LTE (Cat 4), 3G, 2G
  • eSIM™ Seamless connectivity with eSIM™ SGP.22
  • TPM Next-gen router security with Trusted Platform Module
  • RMS For easy & convenient eSIM™ profile management
Details
Product code RUT241eSIM (RUT241235000)
Mobile module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
supported Bands 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28; 4G (LTE-TDD): B38, B39, B40, B41
3GPP Release Release 10/11 depending on the hardware version
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
SIM PIN code management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN
Wireless mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Ethernet WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
Ethernet LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash
I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4-pin power connector
Antennas 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
Reset Reboot/User default reset/Factory reset button
Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 125 g
Mounting options DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Details
Includes 9 W PSU, 2 x LTE antennas (swivel, SMA male), 1 x WiFi antenna (swivel, RP-SMA male) Ethernet cable (1.5 m), SIM Adapter kit, QSG (Quick Start Guide)
