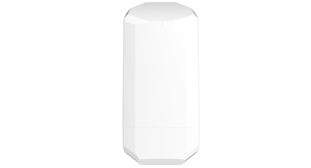

Teltonika OTD500 Outdoor 5G, 4G Cat19 Router with build in Antenna

Teltonika OTD500 Outdoor 5G, 4G Cat19 Router with build in Antenna

OTD500

$995.00 NZD
$995.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika OTD500 Outdoor 5G, 4G Cat19 Router with build in Antenna
Teltonika OTD500 Outdoor 5G Router.

The OTD500 is a durable 5G outdoor router built for reliable connectivity in demanding environments. Its IP55-rated housing withstands harsh conditions, and the integrated mounting bracket enables quick, hassle-free installation. Dual SIM and eSIM with automatic switching provide exceptional network flexibility and redundancy. Gigabit Ethernet ports with PoE-in and PoE-out simplify setup by combining power and data in a single cable. Fully RMS-compatible, the OTD500 offers effortless remote management, making it perfect for outdoor connectivity solutions.

Features
  • IP55 durability for outdoor deployment
  • 5G, 4G Cat 19 Connectivity
  • Seamless connectivity with eSIM SGP.22
  • 1 x PoE-in and 1 x PoE-out port
Details
Product code OTD500100000
Mobile module 5G Sub-6Ghz SA/NSA 2.4/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G LTE – LTE Cat 19 1.6Gbps DL/200Mbps UL; 3G up to 42 Mbps DL/5.76Mbps UL
3GPP Release Release 16
supported Bands 5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n71, n75, n76, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32, B71; 4G (LTE-TDD): B38, B40, B41, B42, B43
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
CPU MediaTek, Dual-core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
APN Auto APN
ETHERNET 2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Power consumption Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W
PoE In Port 1 x 802.3af/at
PoE Out Port 1 x 802.3af Alternative B, 15 Watt Max (power supply unit dependent)
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Status LEDs 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Power RJ45, PoE In, 42.5 – 57.0 VDC
Antennas 4 x internal antennas
Antennas specifications 4 x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 ?, VSWR <3.5, gain <4.9 dBi, omnidirectional
Reset Reboot/User default reset/Factory reset button
Casing material Plastic (PC+ASA)
Dimensions (W x H x D) 110 x 49.30 x 235 mm
Weight 385 g
Mounting options Mounting bracket (for vertical flat surface or pole mounting)
Operating temperature -40 °C to 55 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP55
Regulatory CE, UKCA, RCM, CB, EAC, UCRF, WEEE
Details
Included OTD500 Router, Router Holder, QSG (Quick Start Guide)
