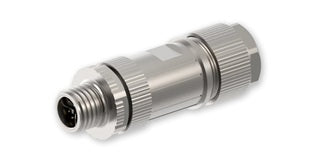

Teltonika M12 X Type 8-PIN male connector
Teltonika M12 X Type 8-PIN male connector
SKU:PR40118K
Regular price
$54.00 NZD
Regular price
Sale price
$54.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Teltonika PR40118K M12 X Type 8-PIN male connector
Teltonika PR40118K M12 X Type 8-PIN male connector.
Features
- Compatible with ATRM50 Transportation Router
| Details | |
|---|---|
| Manufacturer's Product Code | PR40118K |
| Voltage rating | 48V AC / 60V DC |
| Current carrying capacity | 0.5 A |
| Conductor cross section, solid wire | AWG 26/1 - AWG 22/1 |
| Conductor cross section, stranded wire | AWG 26/7 - AWG 22/7 |
| Temperature range | -40 °C to +85 °C |
| Mounting method | Screwable (M12) |
| Insertion and withdrawal force | ? 30 N |
| Life - number of mating cycles | ? 100 |
| IP rating | IP67 (when plugged in) |
| Housing material | GD-Zn (zinc die-cast) |
| Contact material | CuZnPb (brass) |
| Contact finish material | Ni + Au (nickel-gold) |
| Shield material | CuSn (tin bronze) |
| Shield finish material | Sn (tin) |
| Stuffer cap material | PA |
| Finish material | Ni (nickel) |
| Weight | 47 g |
| RoHS | Yes |
| REACH | Yes |
| Details | |
|---|---|
| Included | 1x PR40118K |
