Teltonika Industrial Dual Band WiFi 5 802.11ac Gigabit Router with Bluetooth

Teltonika Industrial Dual Band WiFi 5 802.11ac Gigabit Router with Bluetooth

RUTX10

$400.00 NZD
$400.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika Industrial Dual Band WiFi 5 802.11ac Gigabit Router with Bluetooth BLE

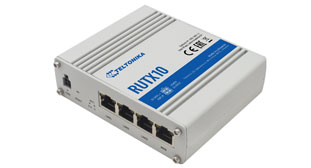

Teltonika RUTX10 Industrial Dual Band WiFi 5 802.11ac Gigabit Router with Bluetooth BLE

The RUT X10 is a Next-Generation Teltonika Enterprise router, equipped with the Dual Band WiFi 5 802.11ac and a Bluetooth LE module. Perfect for Small office or Public sector applications. High speed WiFi connectivity allows companies to transition into all-wireless office settings.

The RUTX10 Enterprise module has been created specifically for small to mid-size office applications. It comes with Dual Band WiFi 5 802.11ac, that is extremely important for high data transmission and a lag-free browsing experience. RUTX10 has all the latest security features with the ability to monitor and control your office data usage remotely.

The highly customizable RutOS is at the soul of RUTX10, but it’s actually a synergy between hardware and software that makes this device a perfect performer in enterprise solutions. The Quad Core ARM Cortex A7 717 MHz CPU is more than enough for VPN functionality.

Features
  • Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
  • Gigabit Ethernet with speeds up to 1000 Mbps
  • Teltonika Remote Management System compatible
  • Bluetooth LE for short range communication
  • Quad core ARM Cortex A7 CPU, 717 MHz
  • RutOS – easy to use, secure and feature rich Operating System
Details
Product code RUTX10000400
Ethernet WAN - 1 x WAN port 10/100/1000 Mbps, 3 x LAN ports 10/100/1000 Mbps
Wireless mode 802.11ac (WiFi 5),Dual Band, MU-MIMO
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
Bluetooth Bluetooth low energy (LE) for short range communication
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Modbus TCP slave ID range 1-255
Modbus TCP master supported functions 01, 02, 03, 04, 05, 06, 15, 16 supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH memory 256 MB SPI Flash
Development SDK package with build environment provided (planed)
Applications Samba share, custom scripts
Events SMS, Email, RMS (Teltonika Remote Management System)
Power Connector 4 pin industrial DC power socket
Input voltage range 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption 11 W Max
I/Os 1 Digital Input, 1 Digital Output on 4 pin power connector
Status LEDs 8 x LAN status LEDs, 1 x Power LED, 2.4G and 5G WiFi LEDs
Antennas 2 x RP-SMA (WiFi), 1 x RP-SMA for Bluetooth
USB USB A port for external devices
Casing material Full aluminium housing
Dimensions 115 mm x 95 mm x 32 mm (H x W x D), Weight: 357 g
Mounting options DIN rail (can be mounted on two sides), flat surface placement
Operating temperature -40 C to 75 C, Humidity: 0 % to 90 % non-condensing
Ingress Protection Rating IP30
Details
Router RUTX10
Power NZ AC/DC power adapter 9 V 1 A, 4 pin plug included
Antennas 2 x WiFi antennas (swivel, RP-SMA male), 1 x Bluetooth antenna (swivel, RP-SMA male)
Cable Ethernet (1.5 m)
