Teltonika Telematics

Teltonika iButton Reader

Teltonika iButton Reader

PPEX00000060

$31.00 NZD
$31.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

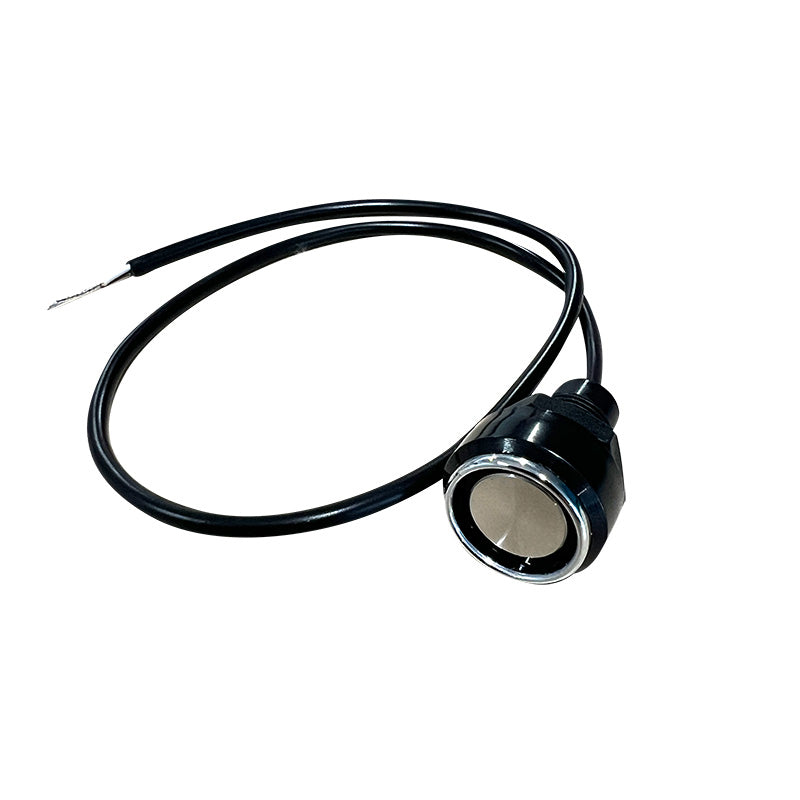

Teltonika iButton Reader PPEX00000060
Teltonika iButton Magnetic Key tag reader. One of the implemented features for fleet management devices is 1-Wire data protocol, which enables connection of iButton. The iButton IoT device is perfect for any application where AVL data needs to travel along with a person or object identification. One of the implemented features for fleet management devices is 1-Wire data protocol, which can be used for iButton reading. It is the most straight-forward way to implement driver authorization in your vehicles. To connect the 1-wire iButton reader, simply connect the 1-Wire Signal wire from the reader to the 1-Wire Data pin on the device, and connect the ground wire to the same grounding used for the device.
Features
  • Immobilizer - prevent anyone from starting the vehicle without scanning an iButton first.
  • Authorized driving - keep track of who is driving your vehicle according to the iButton ID they use to authenticate themselves.
  • AutoGeofencing – gives ability to know when car leaves customized areas without iButton authorization.
Details
Product Code PPEX00000060
Interface White wire – 1-wire signal, Brown wire - Ground
Case material Plastic (polyacetal)
Ring material Ferrite steel with chrome plating
Signal joint material Brass with chrome plating
Wire dimensions 2 wires Ø 0,25 mm2, 40 cm length
Fastening method M12 screw, tape, glue, etc.
Operating temperature From -40 ºC to +85 ºC
supported 1-Wire commands 0x33 (0x0F) - Read ROM, 0xF0 - Search ROM
Operating humidity 5% to 95% non-condensing
Regulatory RoHS certified
Details
Contents 1 x Magnetic iButton key reader
