Teltonika

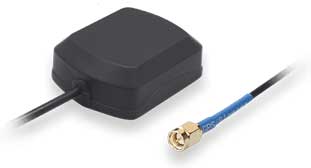

Teltonika GNSS Adhesive SMA Male Antenna

Teltonika GNSS Adhesive SMA Male Antenna

003R-00250

$25.00 NZD
$25.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika GNSS Adhesive SMA Male Antenna
Teltonika GNSS Adhesive Antenna with SMA Male connector.
Details
Manufacturer's Product Code 003R-00250 (PR1KSG30)
Frequency 1575.42-1602 MHz
Polarization RHCP
Antenna Gain 2 dBi
Antenna V.S.W.R < 1.5
Impedance 50 Ohm
Max Axial Ratio 3 dB
LNA Gain 26±2 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 2.2-5.0 VDC
Current Consumption 5-15 mA
LNA V.S.W.R < 2.0
Cable RG174, 3000 mm
Connector SMA Male
Mounting Method Adhesive
Operating Temperature -40 to +85
Operating Relative Humidity 95 % max
RoHS Compliant Yes
Details
View full details
