Teltonika GNSS Adhesive Fakra Antenna

Teltonika GNSS Adhesive Fakra Antenna

003R-00235

$23.00 NZD
$23.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika GNSS Adhesive Fakra Antenna

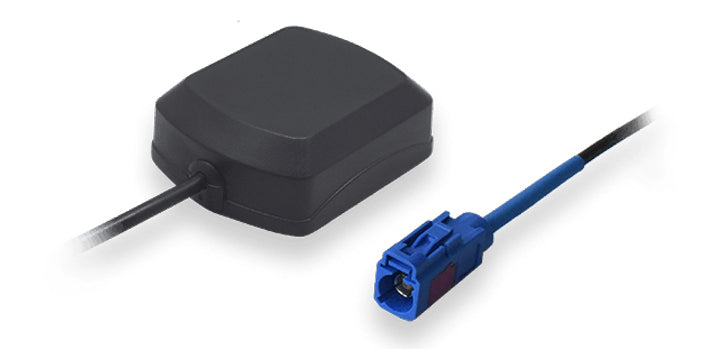

Teltonika 2dBi GNSS Adhesive Antenna with FAKRA C Female straight connector.
Features
  • RG174 3 meter cable
  • FAKRA C Female straight connector
Details
Manufacturer's Product Code 003R-00235
Frequency 1575.42-1602 MHz
Polarization RHCP
Antenna Gain 2 dBi
Antenna V.S.W.R < 1.5
Impedance 50 Ohm
Max Axial Ratio 3 dB
LNA Gain 26±2 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 2.2-5.0 VDC
Current Consumption 5-15 mA
LNA V.S.W.R < 2.0
Cable RG174, 3000 mm
Connector FAKRA C Female straight
Mounting Method Adhesive
Operating Temperature -40 to +85
Operating Relative Humidity 95 % max
RoHS Compliant Yes
