Teltonika Telematics

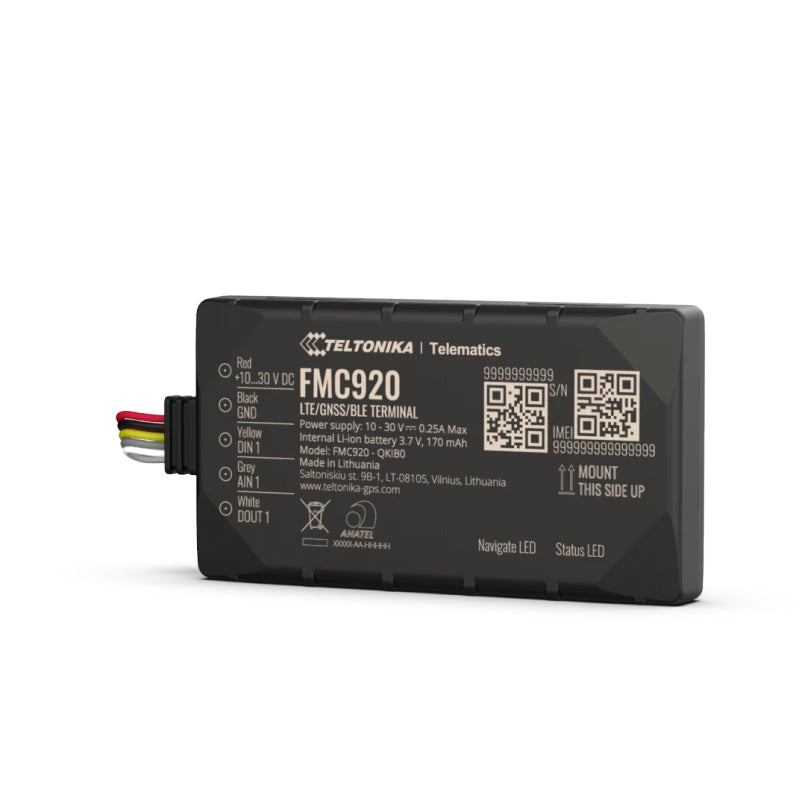

Teltonika FMC920 Compact 4G LTE Cat 1 GPS Tracker

Teltonika FMC920 Compact 4G LTE Cat 1 GPS Tracker

FMC920

$129.00 NZD
$129.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Teltonika FMC920 Small and Smart Advanced GPS Tracker With Future proofed 4G Connectivity, Bluetooth and a backup battery
Teltonika FMC920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency.

The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.

The far-reaching experience of the FMC920 predecessor shows that it is a perfect choice for basic track & trace and fleet management.

Features
  • Reliable 4G (LTE Cat 1) connection with fallback to 2G (GSM) networks
  • Bluetooth for external devices and Low Energy sensors
  • Go Wireless NZ for Fleet Management IoT hardware
  • Fuel monitoring Via OBD Dongle (Not Included)
  • Large Number Of Driving scenarios supported (Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip)
Details
Product code FMC920
Module Name Quectel EC21-AU, Quectel EG915U-EU, Teltonika TM2500
Technology LTE(4G)/(GSM/GPRS)/GNSS/BLUETOOTH
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS, SBAS
Protocol compatible NMEA, GGA, GGL, GSA, GSV, RMC, VTG
Receiver Tracking: 33 channel
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular Technology LTE Cat 1, GSM
4G bands EG915U-EU: LTE FDD: B1/B3/B7/B8/B20/B28
Data support SMS (text/data)
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion, 3.7 V battery (0.63 Wh)
Bluetooth Specification 4.0 + LE
supported peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
Dimensions 79 x 43 x 12 mm (L x W x H)
Weight 54 g
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP54
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM 1x SIM Card (Micro)
Memory 128MB internal flash memory
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
Time Synchronization GNSS, NITZ, NTP
Details
Cables Included micro USB-USB cable (0.8 m)
