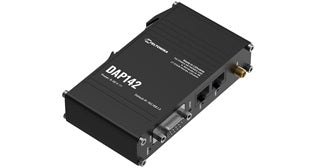

Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point
Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point
SKU:DAP142
Regular price
$168.00 NZD
Regular price
Sale price
$168.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point
Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point
The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.
The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.
Features
- Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming
- 2 x 10/100 RJ45
- RS232 port
- 1 x 3-pin power connector tailored for industrial use
- DIN Rail Bracket for easy mounting for plug-and-play deployment
| Details | |
|---|---|
| Product code | DAP142 |
| Wireless mode | IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP |
| WiFi security | WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP |
| SSID/ESSID | ESSID stealth mode |
| Wi-Fi users | Up to 50 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| LAN | 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB serial NOR flash |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL) |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| VPN | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| DNP3 supported modes | Station, Outstation |
| supported connection | TCP, RTU(RS232) |
| DLMS/COSEM support | DLMS - standard protocol for utility meter data exchange, and Client |
| Serial RS232 | Terminal block connector: TX, RX, RTS, CTS |
| Serial functions | Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client |
| Power Connector | 3-pos plugable terminal block |
| Input voltage range | 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | Idle: < 1 W / Max: < 2 W |
| Status LEDs | 2 x LAN type LED, 1 x Power LED |
| Antennas | 1 x RP-SMA for Wi-Fi |
| RS232 | 1 x DB9 socket |
| Reset | Reboot/User default reset/Factory reset button |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 113.10 x 25 x 68.6 mm |
| Weight | 149.2 g |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | CE, UKCA, CB, FCC/IC |
| Details | |
|---|---|
| Included | Industrial Access Point DAP142, 3-pin power connector, 1x Wi-Fi antenna (magnetic, RP-SMA male), QSG (Quick Start Guide) |
| Power Supply | Not Included |
