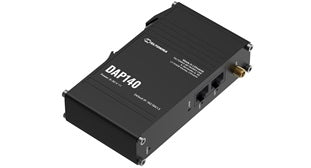

Teltonika DAP140 Industrial DIN Rail mount Wi-Fi Mesh Access Point

Teltonika DAP140 Industrial DIN Rail mount Wi-Fi Mesh Access Point

DAP140

$150.00 NZD
$150.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika DAP140 Industrial DIN Rail mount Wi-Fi Mesh Access Point
Teltonika DAP140 Industrial DIN Rail mount Wi-Fi Mesh Access Point

The DAP140 is a Teltonika industrial wireless access point with passive PoE-in, designed to enhance Wi-Fi coverage and performance in industrial environments. Featuring Wi-Fi 4 with Wi-Fi mesh and Fast Roaming, as well as dual RJ45 ports and support of up to 50 simultaneous connections, this wireless access point is integral in maintaining reliable connectivity. An integrated DIN rail bracket, 3-pin power connector, and industrial-grade aluminium housing make the DAP140 the ideal access point for industrial applications.

Features
  • Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming
  • 2 x 10/100 RJ45
  • 1 x 3-pin power connector tailored for industrial use
  • DIN Rail Bracket for easy mounting for plug-and-play deployment
Details
Product code DAP140
Wireless mode IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
WiFi security WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi users Up to 50 simultaneous connections
Wireless mesh/roaming Fast roaming (802.11r), Radio Resource Measurement (802.11k), BSS Transition Management (802.11v), Client isolation, Hide SSID, WMM
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB serial NOR flash
LAN 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Routing Static routing, Dynamic routing(RIP, OSPF, EIGRP, BGP, NHRP), Policy based routing, Routing rules
Network protocols TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Input voltage range 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption Idle: < 1 W / Max: < 2 W
Status LEDs 2 x LAN type LED, 1 x Power LED
Power 1 x 3-pin power connector
Antennas 1 x RP-SMA for Wi-Fi
Reset Reboot/User default reset/Factory reset button
Casing material Aluminium housing
Dimensions (W x H x D) 113,10 x 25 x 68,6 mm
Weight 142.3 g
Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE, UKCA, CB, FCC/IC
Details
Included Industrial Access point DAP140, 3-pin power connector, 1x Wi-Fi antenna (magnetic, RP-SMA male), QSG (Quick Start Guide)
Power Supply Not Included
