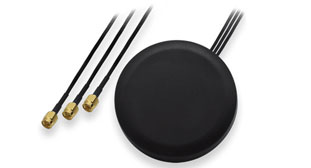

Teltonika Combo SISO Cellular, GPS and WiFi Roof Antenna

Teltonika Combo SISO Cellular, GPS and WiFi Roof Antenna

PR1KCS28

$76.00 NZD
$76.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika Combo SISO Cellular, GPS and WiFi Roof Antenna
Teltonika Combo SISO Cellular, GPS and WiFi Roof Antenna with 3 meter cable and SMA Connectors
Features
  • supports 3G, 4G, LTE, GNSS, WiFi
Details
Manufacturer's Product Code PR1KCS28
Frequency Range (GNSS) 1575.42-1610 MHz, (LTE) 850/900/1800/1900/2170 MHz, (WiFi) 2350-2500 MHz
Polarization (GNSS) RHCP, (LTE) Vertical, (WiFi) Vertical
Impedance (All) 50 ?
Gain (GNSS LNA Gain) 28 dB, (LTE) 3.5dBi, (WiFi) 2.5dBi
GNSS Supply Voltage 2.7-5 ±0.5 VDC
GNSS Current Consumption < 15 mA
VSWR (GNSS LNA V.S.W.R) <1.65, (LTE) <1.5:1, (WiFi) <1.5:1
Connectors (GNSS) SMA Male, (LTE) SMA Male, (WiFi) RP-SMA Male
Mounting Method Screw
Radome Ingress Protection rating IP67
Radome Material ABS
Weight <250g
Housing Dimensions Ø 80x15 mm
Cable 3x RG174, 3000 mm
RoHS Compliant Yes
