Teltonika

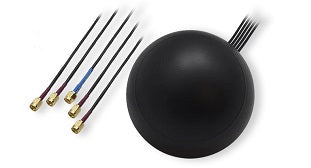

Teltonika Combo Quad 4G LTE Mobile/GNSS Roof Antenna with SMA Connectors

Teltonika Combo Quad 4G LTE Mobile/GNSS Roof Antenna with SMA Connectors

PR1KCL28

$142.00 NZD
$142.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika Combo Quad Mobile/GNSS Roof Antenna with SMA Connectors
Teltonika PR1KCL28 Combo Quad 698-960 / 1710-2690 MHz 4G LTE Mobile/GNSS Roof Antenna with SMA Connectors.
Details
Product Code PR1KCL28 (HS Code 85291010)
GNSS Frequency Range 1575.42 MHz
GNSS Polarization RHCP
GNSS Impedance 50 Ohm
GNSS LNA Gain 28±2 dB
GNSS Supply Voltage 3-5 VDC
GNSS Current Consumption < 15 mA
GNSS V.S.W.R <2.0
GNSS Connector SMA Male
GNSS Cable 1 x RG174, 3000 mm
LTE Frequency range 698-960 / 1710-2690 MHz
LTE Polarization Linear
LTE Impedance 50 Ohm
LTE Gain 3 dBi
LTE V.S.W.R <3.0
LTE Impedance 50 ?
LTE Connector SMA Male
LTE Cable 4 x RG174, 3000 mm
Radome material ABS
Radome ingress protection rating IP67
Mounting method Screw
Operating temperature -40 degC to +85 degC
Operating relative humidity < 95 %
RoHS compliant Yes
Weight 540 g
