Teltonika

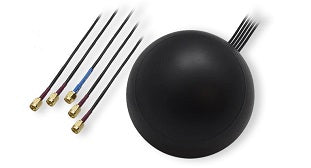

Teltonika Combo MIMO 4G LTE Mobile/GNSS/WIFI Roof SMA Antenna

Teltonika Combo MIMO 4G LTE Mobile/GNSS/WIFI Roof SMA Antenna

PR1KCO28

$134.00 NZD
$134.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Teltonika Combo 4G LTE MIMO Mobile/GNSS/WIFI Roof SMA Antenna
Teltonika Combo MIMO 698 – 960, 1710 – 2690 MHz 4G LTE Mobile/GNSS/WIFI Roof SMA Antenna. Features GNSS antenna, plus Dual polarity 4G/LTE antenna with two SMA Male connectors and Dual polarity, Dual Band 2.4GHz and 5GHz antennas with RP-SMA Male connectors.
Details
Product Code PR1KCO28
GNSS Antenna Frequency Range 1575.42-1610 MHz
GNSS Antenna Polarization RHCP
GNSS Antenna Impedance 50 Ohm
GNSS Antenna LNA Gain 28±2 dB
GNSS Antenna LNA Noise Figure < 1.5 dB
GNSS Antenna Supply Voltage 3-5 VDC
GNSS Antenna Current Consumption < 15 mA
GNSS Antenna LNA V.S.W.R <2.0
GNSS Antenna Connector SMA Male
LTE MIMO Antenna Frequency Range 698-960/1710-2690 MHz
LTE MIMO Antenna Polarization Linear
LTE MIMO Antenna Gain 3 dBi
LTE MIMO Antenna V.S.W.R < 3.0
LTE MIMO Antenna Impedance 50 Ohm
LTE MIMO Antenna Connector 2x SMA Male
WiFi MIMO Antenna Frequency Range 2400-2483.5/4900-5825 MHz
WiFi MIMO Antenna Polarization Linear
WiFi MIMO Antenna Gain 2 dBi
WiFi MIMO Antenna V.S.W.R <2.5
WiFi MIMO Antenna Impedance 50 Ohm
WiFi MIMO Antenna Connector 2x RP SMA Male
Mounting Method Screw
Radome Ingress Protection rating IP65
Radome Material ABS
Weight <550g
Housing Dimensions 110x55 mm
Cable 5x RG174, 3000 mm
RoHS Compliant Yes
