Teltonika Telematics

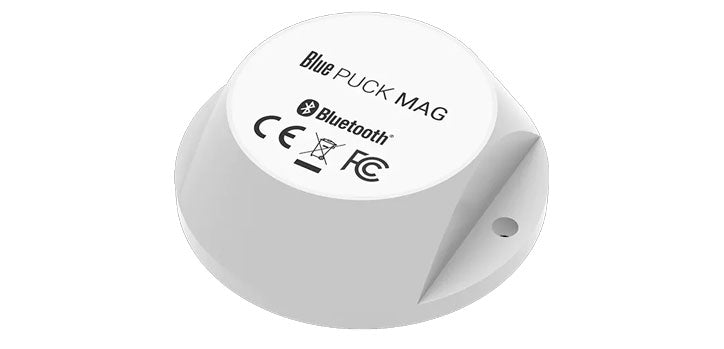

Teltonika Blue Puck MAG - Bluetooth 4.0 LE Magnet Contact Sensor

Teltonika Blue Puck MAG - Bluetooth 4.0 LE Magnet Contact Sensor

BLUE_PUCK_MAG

$78.00 NZD
$78.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Teltonika Blue Puck MAG - Bluetooth 4.0 LE Magnet Contact Sensor
Teltonika is always focused on innovation and constantly offers new solutions to customers. Latest addition of BLE sensors extends covered business cases: doors, hood or similar objects open/close status monitoring. In combination with sensor it is necessary to use additional magnet. Sensor can send information when magnet is attached/detached. Bluetooth magnet sensors are small signal transmitters with configurable signal strength and data send intervals. Sensor uses advanced Bluetooth 4.0 LE technology to get data from long distance and can work from one battery up to 11 years.
Features
  • Long transmission range, up to 500 meters (open field)
  • Long battery life time, up to 11 years
  • Easy configuration with dedicated mobile application via secured NFC
  • IP68 Rated
Details
Product code Blue Puck Mag (PRIEDAS 1A3 (MAGNET))
Battery Lifecycle up to 11 years
Bluetooth 2,4 GHz - Bluetooth Low Energy 4.0/4.2
NFC supported
Dimensions ø 57 mm base - Thickness 18 mm - 2 mounting ø 4 mm holes, spaced of 49 mm
Weight 36 g
Operating temperature -40°C to +85°C
Ingress Protection Rating IP68 (Waterproof)
Transmission range Up to 500 meters (open field)
Transmission period 0,1 to 10 second (programmable)
Regulatory CE (Europe)*: EN 300 328/ EN 301 489 & EN 55032 / EN 62368-1, FCC (USA)*: FCC 15.247 / FCC PT 15B, ISED/IC (Canada)*: RSS-247 / ICES-003, RoHS certified,(*) Certification in progress
Details
Contents 1 x Blue Puck Mag movement Sensor
View full details
