Teltonika ATRM50 5G Gigabit Transportation Router with M12 Connectors

Teltonika ATRM50 5G Gigabit Transportation Router with M12 Connectors

ATRM50

$1,938.00 NZD
$1,938.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Teltonika ATRM50 5G Gigabit Transportation Router with M12 Connectors
Contact sales@gowifi.co.nz to pre-order!

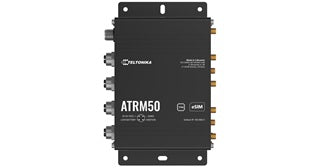

Teltonika ATRM50 5G Gigabit Transportation Router with M12 Connectors.

The ATRM50 is a rugged 5G router built for transportation, featuring 4 x M12 Gigabit Ethernet ports and M12 power input for durable, secure connections. It delivers ultra-high cellular speeds up to 3.4 Gbps and supports dual SIM with eSIM™ for seamless failover. Certified to EN 45545-2 and EN 50155 standards, the ATRM50 is engineered to meet the rigorous safety and reliability requirements of railway systems—while also being a strong fit for other demanding transportation environments. The router comes with GNSS, an integrated mounting bracket, and is compatible with RMS for efficient on-site and remote management.



Features
  • 4 × M12 X-coded Gigabit Ethernet ports, 1 × M12 A-coded power input
  • 5G Ultra-high cellular speeds of up to 3.4 Gbps
  • DUAL SIM & eSIM With auto failover, backup WAN and other switching scenarios
  • EN 45545-2 and EN 50155 Certificates
Details
Product code ATRM50100000
Mobile module 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps; 3G 42 Mbps (DL)/ 5.76 Mbps(UL)
3GPP Release Release 16
eSIM Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM switch Dual sim cards and esim, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
Wireless mode 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi users Up to 150 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Hotspot 2.0 Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS supported >25 service providers, others can be configured manually
VPN OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
MODBUS supported modes Server, Client
CPU MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM 256 MB, DDR3
FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
USB Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input 2 x Inputs for Ignition Detection and Low Battery
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
SD CARD Micro SD (internal) Up to 2 TB
Power Connector M12 A code 4 pin male
Input voltage range 9 - 50 VDC, reverse polarity protection, Overvoltage protection (70V), Surge protection >69 VDC 10us max
I/O’s 2 x Input (Ignition detection/Low battery)
Power consumption Idle: < 5.5 W, Max: < 16 W
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Casing material Anodized aluminum housing and panels
Dimensions (W x H x D) 167 x 46.2 x 112.4 mm
Weight 550 g
Ingress Protection Rating IP30
Regulatory CE, UKCA, RCM, R-NZ, CB, EAC, UCRF, WEEE
Details
Included ATRM50 Router, Hex key, QSG (Quick Start Guide)
